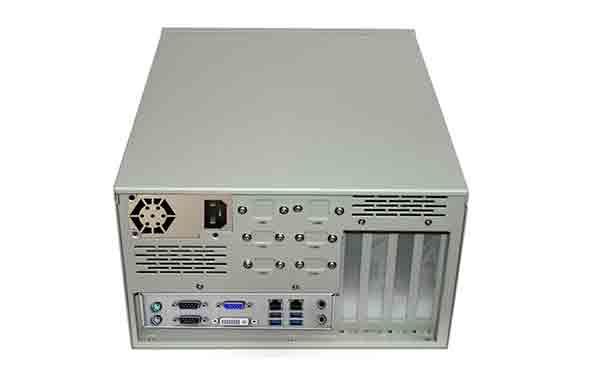

◆All-metal design
| Processor | Supports full series of 4th Gen Intel LGA1150 processors, Built-in i5-4460 CPU (main frequency 3.2GHz, Quad-core & Quad-thread |
| Chipset | B85 |
| BIOS | AMI UEFI |
| ?Memory | 2*DIMM slots, Max. 16GB DDR3 1333/1600MHz Standard specification |
| Display | Intel? HD Graphics (VGA+DVI) |
| Expansion Slot | 1* PCIEx16 1* PCIEx4 2* PCI |
| Ethernet | 2*LAN 10/100/1000Mbps, support Wake On LAN |
| Drive Bay | Supports 1*MSATA, 1*2.5" or 1*3.5" drive bay Standard specification：1*128GB 2.5" SSD. |
| ?I/O Interfaces | 1*VGA；1*HDMI 2* LAN, 10/100/1000Mbps (Intel) Built-in 2*RS232, Optional 6*COM (COM1 optional RS232/485, COM2 optional RS232/422/485) 8*USB (4*USB 3.0 onboard, 4*USB 2.0) 1*Line-in, 1*Line-out, 1*MIc-in 1*Metal Switch, 1*PS/2 |
| Motherboard Supports | Mini-ITX (170mm170mm), Micro-ATX (245mm245mm); Standard specification EC9-B8562-4P |
| ?Operating Temperature | -10℃ to 60℃, 5%-95% (non-condensing) |
| Storage Temperature | -20℃ to 70℃, 5%-95% (non-condensing) |
| ?Power Supply | AC 220V input ATX 300W PSU supplied as standard (wide-range AC 90-264V optional) |
| ESD | Contact 4Kv, Air Gap 6Kv |
| Vibration Resistance | GB/T2423.10 |
| Chassis Material | High-strength aluminum alloy panel |
| Mounting | Wall mount |
| OS Support | Windows? 10/8/7/2008/Linux |
| Dimensions (W*H*D) | 263*160*331.5(mm) |
| Model No. | Description |
| IPC-H606-02 | Wall mount industrial PC/EC9-B8562-4P/B85 chipset (supports 4th Gen CPUs)/i5-4460/4GB DDR3/1*SATA3 + 1*mSATA (128GB SSD)/4*USB3.0 + 4*USB2.0/1*VGA + 1*HDMI/Standard specification：2*RS232, optional 6*RS232; COM1 optional RS232/422/485, COM2-4 optional RS232/485)/2*LAN (2*Intel I211 chipset)/1*PS2/Line-in, Line-out, MIC-in/1*PCIex16, 1*PCIex4, 2*PCI/AC 220V input ATX 300W PSU supplied as standard (wide-range AC 90-264V optional)/Wall mount. |
| IPC-H606-03 | Wall mount industrial PC/TMATX-H110-E621/H110 chipset (supports 6th-9th Gen CPUs)/i5-6500/8GB DDR4 (Max. 32GB)/1*SATA3 + 1*mSATA, Standard specification 128GB SSD/4*USB3.0 + 4*USB2.0/1*VGA + 1*HDMI/Standard specification 2*RS232 Max. 5*RS232 (COM1 optional RS232/422/485)/2*LAN (1*Intel I210 + I219 chip)/1*PS2/Line-in, Line-out, MIC-in/1*PCIe x16, 1*PCIe x4, 2*PCI/AC 220V input ATX 300W PSU supplied as standard (wide-range AC 90-264V optional)/Wall mount. |
| IPC-H606-04 | Wall mount industrial PC/EC9-T4262-C/H420E chipset (supports 10th or 11th Gen CPUs)/i5-10400/8GB DDR4 (Max. 32GB)/1*SATA3 + 1*mSATA, standard specification 128GB SSD/4*USB3.0 + 4*USB2.0/1*VGA + 1*HDMI/Standard specification 2*RS232 Max. 6*RS232 (COM1 optional RS232/422/485, COM2-4 support RS232/485)/2*LAN (Intel I210 + I219 chip)/1*PS2/Line-in, Line-out, MIC-in/1*PCIe x16, 1*PCIe x4 / 2*PCI/AC 220V input ATX 300W PSU supplied as standard (wide-range AC 90-264V optional)/Wall mount. |
