| Monitor | 15.6" |
| Resolution | 1920*1080 |
| Brightness | 250cd/㎡(Typ.) |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) |
| Touchscreen | 10-Point Industrial-Grade Capacitive Touchscreen |
| Processor | J6412(Base Frequency 2GHz,Turbo Boost 2.6GHz,Quad-core,Quad-thread) TDP 10W |
| Chipset | MCU |
| BIOS | AMI UEFI |
| Memory | 1*SO-DIMM Slot,DDR4 2666/2933/3200MHz,up to 32G Built-in 1*8G DDR4 2666 laptop memory |
| Display | Nuclear Display (HDMI) |
| Expansion Slot | 1*M.2 (Key-B,3042/3052,supports 4G) 1*M.2 (Key-E,2230,supports WIFI+BT) |
| Ethernet | 2*10/100/1000Mbps, support Wake On Lan |
| Drive Bay | 1*2.5" drive bay 1*M.2(Key-M, SATA SDD, 2242/2260/2280) built-in 128G SSD |
| I/O Port | 1* HDMI, 2*LAN, support 10/100/1000Mbps 2*COM (built-in 2*RS232, COM2 optional RS485) 4*USB3.0,6*GPIO(2*GPI,4*GPO) 1* Audio Line-Out + MIC 2-in-1 (CTIA International Standard) (built-in speaker) 1* Power button, 1*Restart button, 1*Remote switch, 1*SIM Slot 1*NFC (Supports MIFARE ONE) 1* Code scanner (not supplied by default) 1* Camera (not supplied by default) 1*DC power connector (aviation plug) |
| Operating Temperature | -10°C - 60°C,5% ~ 95% (non-condensing) |
| Storage Temperature | -20°C - 75°C, 5% ~ 95% (non-condensing) |
| Power Supply | Built-in DC12V input, optional DC9V-36V wide voltage input (built-in 12V 60W power adapter) |
| ESD | Contact 6Kv, Air Gap 8Kv |
| Vibration Protection | GB/T2423.10 |
| Chassis Material | Aluminum-magnesium Alloy, Galvanized Steel |
| Mounting | Embedded, Wall mount, VESA mount |
| OS Support | Windows? 10/linux |
| Dimension(W*H*D) | 447.9*249.9*88.3（mm) |
| Weight（KG） | 6.2（KG） |
| Model No. | Description |

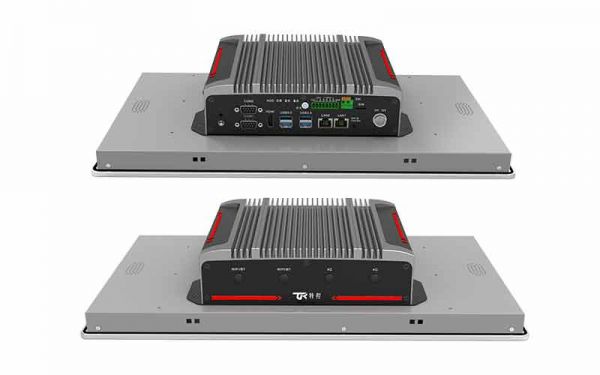

| PPC-HW1522NBCT-G61（MES工位機） | 15.6" Fanless Industrial Touch Screen Panel PC /MCU/EC7-J6462/1920*1080/J6412/8G(Onboard 1 slot DDR4 laptop memory, up to 32G)/1*M.2,1*2.5" drive bay, built-in 128G SSD/1*HDMI/Built-in 2*RS232(COM2 optional RS485)/4*USB3.0/6*GPIO(2*GPI,4*GPO)/2*LAN(2*Realtek 8111)/1*NFC/1*SIM slot/1*Remote switch/1*Audio Line-Out+MIC 2-in-1(CTIA International Standard)/1*M.2(Key-B supports 4G,not supplied by default)/1*M.2(Key-E support WIFI+Bluetooth,not supplied by default)/Built-in speaker/Built-in DC 12V input,optional DC 9V-36V wide-voltage input/Built-in DC 12V 60W power adapter/Embedded, Wall mount,VESA mount |
