| Processor | Supports 1-2 Intel? Xeon? Scalable Processors, or 1-2* 2th Gen Intel? Xeon? Scalable Processors Max. CPU TDP：140W |
| Chipset | Intel? C621 Chipset |
| ?Memory | Supports 8*DDR4 memory slots Maximum capacity：2TB LRDIMM Maximum speed：2933 MT/s |
| Local Storage | Supports 6*non-hot-swappable drive bays (optional 9 drive bays) Supports 3.5” or 2.5” SATA hard drives (with optional SAS hard drive support) Supports 1*M.2 PCI-E SSD |
| RAID Support | Supports RAID 0, 1, 10, and 5 (Windows only) Optional configurations support RAID 0, 1, 5, 6, 10, 50, 60 with cache supercapacitor protection Offering RAID level migration, hot spare, and online capacity expansion functions |
| Network | Supports 2*Gigabit Ethernet data ports Supports 1*Gigabit network management interface Optional configurations include dual Gigabit/10 Gigabit, quad Gigabit/10 Gigabit, and dual 25Gb Ethernet cards |
| Graphics Display | Onboard display chipset |
| Optical Drive | Optional external USB DVD-ROM/DVD-RW |
| Expansion | Supports 2*PCI-E 3.0 x16 slots (HHFL) Supports 3*PCI-E 3.0 x8 slots (HHFL) Supports 1*PCI-E 3.0 x8 slot (HHFL or x4) |

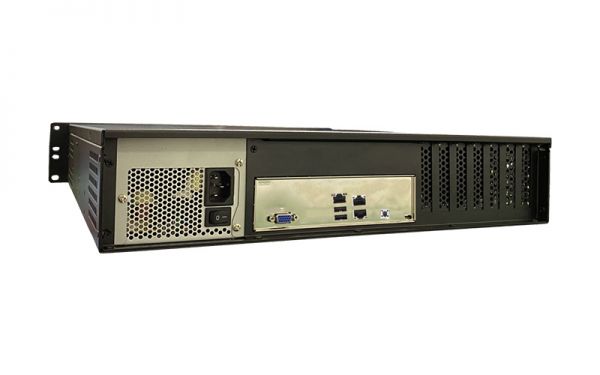

| I/O Interfaces | Front Panel：2*USB 2.0 Rear Panel： 1*VGA 1*RJ45 Gigabit remote management port 2*USB 2.0 2*RJ45 Gigabit Ethernet ports |
| Operating System | Windows 8.1/10 64bit, Windows Server 2012 R2/2016 64bit RedHat Enterprise Linux Server 6.9/7.3/7.4 64bit, CentOS 6.9/7.3/7.4 64bit Ubuntu 16.10/17.104 64bit, VMWare ESXi 6.5 U1 |
| Environment | Operating temperature |
| Power Supply | 600W server power supply (Input |
| Dimensions (W*H*D) | 430*90*553.7（mm） |
| Model No. | Description |
| IPC-H2207C-B | Supports 1-2 Intel? Xeon? Scalable series processors (or 2nd Gen Intel? Xeon? Scalable Processors) / X11DPL-I / C621 Chipset / 8*DDR4 memory slots / 6*non-hot-swappable drive bays (optional 9 bays) / 1 built-in M.2 PCI-E SSD slot / 2* Gigabit Ethernet data ports / 1*Gigabit network management interface / 1*VGA / 6 PCI-E 3.0 slots / 1*optional COM / 600W server power supply, with optional 250W/500W single PSU or 550W/800W 1+1 redundant power supply. |
| IPC-H2207C-B01 | Supports 1*Intel? Xeon? Scalable Processor (or 1*2nd Gen Intel? Xeon? Scalable Processor) / X11SPL-F / C621 Chipset / 8*DDR4 memory slots / 6*non-hot-swappable drive bays (optional 9 bays) / 1*built-in M.2 PCI-E SSD slot / 2*Gigabit Ethernet data ports / 1*Gigabit network management interface / 1*VGA / 7*PCI-E 3.0 slots / 2*COM (one port optional) / 600W server power supply, with optional 250W/500W single PSU or 550W/800W 1+1 redundant power supply. |
| IPC-H2207C-B04 | Supports 1*Intel? Xeon? E-2100/E-2200 or 8th/9th Gen Core? i3/Pentium?/Celeron? processors / X11SCL-F / C242 Chipset / 4*DDR4 memory slots / 6*non-hot-swappable drive bays (optional 9 bays) / 1*built-in M.2 PCI-E SSD slot / 2*Gigabit Ethernet data ports / 1*Gigabit network management interface / 1*VGA / 3*PCI-E 3.0 slots / 2*COM (one port optional) / 250W server power supply, with optional 500W/600W single PSU or 550W/800W 1+1 redundant power supply. |
| IPC-H2207C-B05 | Supports 1*Intel? Xeon? E3-1200 v5/v6 or 6th/7th Gen Core? i3/Pentium?/Celeron? processors / X11SSL-F / C232 Chipset / 4*DDR4 memory slots / 6*non-hot-swappable drive bays (optional 9 bays) / 2*Gigabit Ethernet data ports / 1*Gigabit network management interface / 1*VGA / 3*PCI-E 3.0 slots / 1 COM / 250W server power supply, with optional 500W/600W single PSU or 550W/800W 1+1 redundant power supply. |
| IPC-H2207C-B06 | Supports 1*10th Gen Intel? Core Processor / EC0-Q4762E-2P-A1 / Q470 Chipset / 4*DDR4 memory slots / 6*non-hot-swappable drive bays (optional 9 bays) / 3*built-in M.2 slots (supporting Key E/Key M/Key B) / 1*Gigabit Ethernet data port / 1*2.5G network port / 1*DP1.2/ 1*HDMI2.0a / 1*VGA / 5*PCI-E 3.0 slots / 2*PCI slots (with optional support for one full-height, dual-slot graphics card) / 6*COM / 250W server power supply, with optional 500W/600W single PSU or 550W/800W 1+1 redundant power supply. |
| IPC-H2207C-B07 | Supports 1-2 3rd Gen Intel? Xeon? Scalable Processors / X12DPL-I6 / C621A Chipset / 8*DDR4 memory slots / 6*non-hot-swappable drive bays (optional 9 bays) / 1*built-in M.2 PCI-E SSD slot / 2*Gigabit Ethernet data ports / 1*Gigabit network management interface / 1*VGA / 4*PCI-E 4.0 slots / 1*COM (optional)/ 600W server power supply, with optional 250W/500W single PSU or 550W/800W 1+1 redundant power supply. |
| IPC-H2207C-B08 | Supports 1*3rd Gen Intel? Xeon? Scalable Processor / X12SPL-F / C621A Chipset / 8*DDR4 memory slots / 6*non-hot-swappable drive bays (optional 9 bays) / 1*built-in M.2 PCI-E SSD slot / 2*Gigabit Ethernet data ports / 1*Gigabit network management interface / 1*VGA / 7*PCI-E 4.0 slots / 1*COM (optional) / 600W server power supply, with optional 250W/500W single PSU or 550W/800W 1+1 redundant power supply. |
| IPC-H2207C-B09 | Supports 1*Intel? Xeon? W-2100/W-2200 Processor / X11SRA / C422 Chipset / 8*DDR4 memory slots / 6*non-hot-swappable drive bays (optional 9 bays) / 2*built-in M.2 PCI-E SSD slots / 1*Gigabit Ethernet data port / 1*5G network port / 4*PCI-E 3.0 slots / 1*optional COM / 600W server power supply, with optional 250W/500W single PSU or 550W/800W 1+1 redundant power supply. |
| IPC-H2207C-B10 | Supports 1*Intel? Xeon? E-2300 or 10th Gen Pentium? series processor / X12STL-F / C252 Chipset / 4*DDR4 memory slots / 6*non-hot-swappable drive bays (optional 9 bays) / 1*built-in M.2 PCI-E SSD slot / 2*Gigabit Ethernet data ports / 1*Gigabit network management interface / 1*VGA / 4*PCI-E 4.0 slots / 2*COMs (one port optional) / 250W server power supply, with optional 500W/600W single PSU or 550W/800W 1+1 redundant power supply. |
