◆1* VGA ,4* USB 3.0
| Processor | Supports 1 or 2 Intel? Xeon? Scalable Processors (or 2nd Gen Intelligent Intel? Xeon? Scalable Processors). CPU TDP Up to 205W. |
| Chipset | Intel? C622 Chipset. |
| System Bus | 3 UPI up to 10.4?GT/s. |
| ?Memory | Supports 24*DDR4 memory slots with a maximum capacity of up to 6TB LRDIMM Speed, up to 2933?MT/s. |
| Local Storage | Supports 24*hot-swap 2.5” SATA/SAS drive bays (optional 4*U.2 NVMe SSDs) and 1 built-in M.2 PCI-E SSD slot. |
| RAID Support | Supports RAID 0, 1, 10, and 5 (Windows only). Optional supports RAID 0, 1, 5, 6, 10, 50, 60, etc., Supports cache supercap protection that enables RAID level migration, hot spare, and online capacity expansion. |
| Network | Supports 2*Intel? 10 Gigabit Ethernet ports and 1* Gigabit Ethernet remote management port; optional configurations include dual Gigabit/10 Gigabit, quad Gigabit/10 Gigabit, or dual 25Gb Ethernet cards. |
| Graphics Display | Onboard graphics chipset. |
| Optical Drive | Optional USB DVD-ROM/DVD-RW. |
| Expansion | Provides 8*PCI-E 3.0 x16 slots (FHFL/dual-slot), 2*PCI-E 3.0 x8 slots (FHFL), and 1 PCI-E 3.0 x4 slots (FHFL). |

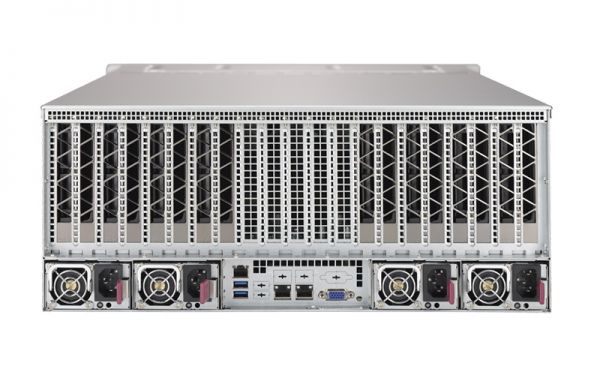

| I/O Interfaces | Rear panel： 1*RJ45 Gigabit remote management port, 4*USB 3.0, 2*RJ45 Gigabit Ethernet , and 1*VGA. |
| Operating System | Windows 10 64bit, Windows Server 2016/2019 64bit RedHat Enterprise Linux Server 7.4/8.1 64bit, CentOS 7.4/8.1 64bit Ubuntu 18.04/20.04 64bit, VMWare ESXi 6.7 U1/7.0 |
| Environment | Operating Temperature |
| Power Supply | 2000W 2+2 redundant power supply (Input |
| Dimensions (W*H*D) | 437*178*737（mm） |
| Model No. | Description |
| EIS-H4259DZ | (4U Dual-socket High-Performance 8*GPU Server)：Supports 1 or 2 Intel? Xeon? Scalable Series Processors / X11DPG-OT-CPU / C622 Chipset / 24*DDR4 memory slots / 24*hot-swap 2.5" drive bays (optionally 4*U.2 NVMe SSDs) / 1*built-in M.2 PCI-E SSD slot / 2*10-Gigabit Ethernet ports / 1*Gigabit remote management port / 1*VGA/ 8 PCI-E 3.0 x16 dual-wide slots / 3*PCI-E 3.0 slots / 1*COM (optional) / 2000W 2+2 redundant power supply. |
| EIS-H4211DZ | (4U Dual-socket High-Performance 10GPU Server)：Supports 1 or 2 Intel? Xeon? Scalable Series Processors / X11DPG-OT-CPU / C622 Chipset / 24 *DDR4 memory slots / 24*hot-swappable 2.5" drive bays (optionally 4 U.2 NVMe SSDs) / 1*built-in M.2 PCI-E SSD slot / 2*10-Gigabit Ethernet ports / 1*Gigabit remote management port / 1*VGA / 11*PCI-E 3.0 x16 slots (Dual-slot spacing design) / 1*PCI-E 3.0 slot / 1*COM (optional) / 2000W 2+2 redundant power supply. |
