Monitor | 12.1" |
Resolution | 1024*768 |
Brightness | 600cd/㎡(Typ.) |
Viewing Angle | 80/80/70/70(Typ.)(CR≥10) |
Touchscreen | 10-Point Industrial-Grade Capacitive Touchscreen |
Processor | Standard Config: I5-1155G7 (Frequency 1.0GHz~ 4.5GHz, 4 cores, 8 threads) Optional: I7-1165G7 (Frequency 1.2GHz~4.7GHz, 4 cores, 8 threads) I3-1115G4 (Frequency 1.7GHz~ 4.1GHz,2 cores, 4 threads) 6305E (Frequency 1.8GHz,2 cores, 2 threads) |
Chipset | MCU |
BIOS | AMI UEFI |
Memory | 2*SO-DIMM slots, DDR4 3200MHz , up to 64 GB Standard Config: 1*8G DDR4 2666, laptop memory |
Display | Integrated Graphics |
Ethernet | Standard Config: 1*Intel I219(10/100/1000Mbps,supports Wake-On-LAn) 1*Intel I225(10/100/1000Mbps) Optional 4*LAN: 1*Intel I219(10/100/1000Mbps,supports Wake-On-LAN) 1*Intel I225(10/100/1000Mbps) 2*Intel I210(10/100/1000Mbps) |
Expansion Slot | Standard version: Supports 1*M.2 (KEY-M,2280,supports SATA SSD) Supports 1*M.2 (KEY-E,2230,PCIE+USB2.0 signal,supports WiFi+BT) Supports 1*M.2 (KEY-B,3052,PCIE/USB3.0+USB2.0 signal,supports 5G+4G/3G) Optional 4*LAN version: No M.2 expansion slot |
Drive Bay | 2*LAN version: Supports 1*M.2 (KEY-M,2280,SATA SSD) Supports 1*2.5” drive bay (Standard config:M.2 SATA SSD 128G) Optional 4*LAN version: Supports 1*2.5” drive bay |

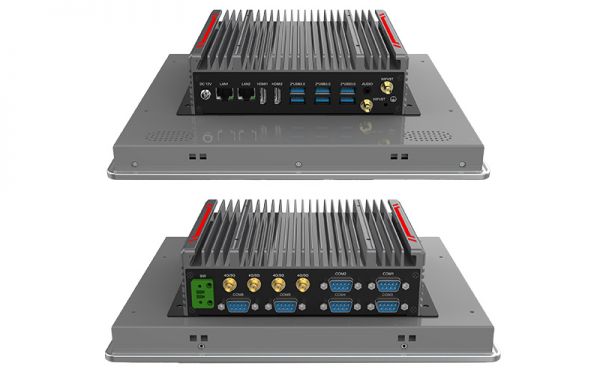

I/O Interface | 2*HDMI 2*LAN version: 6*COM (Standard config 6*RS232, COM6 optional RS232/485) Optional 4*LAN version: 2*COM (2*RS232) 6*USB3.0 1*3.5mm Audio Jack (Line-Out + MIC 2 in 1) 1*Remote Switch,1* SIM slot 1*DC power connector (with thread) |
Operating Temperature | -10℃-50℃, 5%~95%(non-condensing) |
Storage Temperature | -20°C-60°C, 5% to 95% (non-condensing) |
Power Supply | DC 12V,120W Power Adapter |
ESD | Contact 6Kv, Air Gap 8Kv |
Vibration Protection | GB/T2423.10 |
IP Rating | The front panel meets the IP65 dust and waterproof rating |
Chassis Material | Aluminum-magnesium Alloy,Galvanized Steel |
Mounting | Panel embedded,Wall mount,VESA standard |
OS Support | Windows? 10/linux |
Dimensions(W*H*D) | 293.8*236.3*79.5(mm) |
Weight(KG) | Approx. 3.5(KG) |
Model No. | Description |
PPC-H1262NBCT | 12.1" Fanless Industrial Touch Screen Panel PC /1024*768/EC3-T1962L-A|EC3b-H1962L-H/J1900/DDR3L 4G (Onboard 1-slot DDR3L laptop memory, up to 8G)/1*Msata ,1*2.5" drive bay, built-in 128G Msata/2*LAN (2*Intel I211/I210 chips)/Built-in 6*RS232 (COM5 supports RS232/TTL, COM6 supports RS232/RS485)/1*HDMI,1*VGA/1*USB3.0, 5*USB2.0/1*MIC in, 1*Line out/1*MINI PCIE (Optionally supports WiFi or 4G function) / Built-in 12V 5A 60W power adapter/Wall mount, embedded/Windows 10/8/7/Linux |
PPC-H1262NBCT-04 | 12.1" Fanless Industrial Touch Screen Panel PC /1024*768/EC3-T4662-I/I7-4600U/DDR3L 4G (Onboard 1 slot DDR3L laptop memory, up to 8G)/1*Msata, 1*2.5" drive bay, Built-in 128G Msata /2*USB3.0, 4*USB2.0/VGA/Built-in 6*RS232 (COM1 optional RS485, COM2 optional 422/RS485)/2*Gigabit LAN(Intel i211)/ Line-Out, MIC-In/1*Mini PCIE(Optionally supports WiFi and Bluetooth)/DC12V-24V 60W power adapter/Wall mount, Embedded/Windows?10/8/7/2008/linux/ |
PPC-H1262NBCT-09 | 12.1" Fanless Industrial Touch Screen Panel PC /1024*768/EC3-T6462L-A/J6412/8G(1*SO-DIMM Slot, DDR4 2666/2933/3200MHz, up to 32G)/1*2.5" drive bay, 1*M.2(Key-M, 2280, PCIE x2 NVME SDD) Built-in 128G SSD/2*HDMI/2*LAN(2*Intel I225-V)/3*USB3.0, 3*USB2.0/6*COM (Built-in 6*RS232,COM6 optional RS485)/ 1*Audio Line-Out+MIC 2-in-1 (CTIA International standard)/1*Power button, 1*SIM slot/1*M.2 (Key-B, 3052, USB3.0+USB2.0, supports 5G module, 4G module requires an adapter card, Optionally), 1*MPCIE (Full height, PCIE and USB2.0, supports for WIFI and BT) / 1*DC power supply connector (with threads) / Built-in DC12V input (with a 12V 60W power adapter) / Embedded,Wall mount, VESA Mount / Windows10/Linux |
PPC-H1262NBCT-11 | 12.1" Fanless Industrial Touch Screen Panel PC /1024*768/EC3-TB562L-A4/i5-1155G7/DDR4 8G (Onboard 2-slot DDR4, up to 64G)/1*M.2 (Key-M, 2280, SATA SSD signal) Built-in M.2 128G SSD/1*M.2 (KEY-E, 2230, PCIE+USB2.0 signal, supports WiFi and BT)/1*M.2 (KEY-B, 3052, PCIE/USB3.0 and USB2.0 signal Support 5G/4G module)/6*USB3.0/6*RS232 (COM6 optional 232/485)/2*LAN (1*Intel I225 and 1*Intel I219)/2*HDMI/ Built-in 12V 5A 60W Power Adapter/Wall mount |
