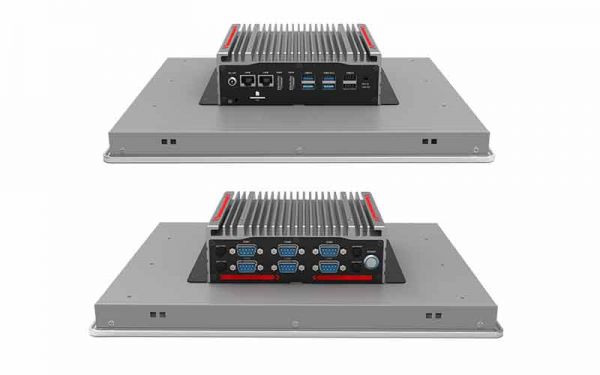

| Monitor | 15.6" |
| Resolution | 1920*1080 |
| Brightness | 250cd/㎡(Typ.) |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) |
| Touchscreen | 10-Point Industrial-Grade Capacitive Touchscreen |
| Processor | J6412(Base Frequency 2GHz, Turbo Boost 2.6GHz, Quad-core, Quad-thread) TDP 10W |
| Chipset | MCU |
| BIOS | AMI UEFI BIOS |
| Memory | 1*SO-DIMM Slot,DDR4 2666/2933/3200MHz,up to 32G Bulit-in 1*8G DDR4 2666 laptop memory |
| Display | Integrated Graphics (HDMI) |
| Expansion Slot | 1*M.2 (Key-B, 3052, USB3.0+USB2.0, supports 4G module) 1*MPCIE (Full height, PCIE+USB2.0, supports WIFI+BT) |
| Ethernet | 2*10/100/1000Mbps, Support Wake On Lan |
| Drive Bay | 1*2.5" drive bay 1*M.2 (Key-M, 2280, PCIE x2 NVME SDD) Built-in 128G SSD |
| I/O Interface | 2*HDMI,2*LAN (Intel I255) 10/100/1000Mbps 6*COM (Built-in 6*RS232, COM6 optional RS485) 3*USB3.0, 3*USB2.0 1* Audio Line-Out + MIC 2-in-1 (OMTP China National Standard) 1* Power button, 1*SIM slot 1*DC power connector (with thread) |
| Operating Temperature | -10℃-60℃, 5%～95%(non-condensing) |
| Storage Temperature | -20°C to 60°C, 5% to 95% (non-condensing) |
| Power Supply | Built-in DC12V input (With 12V 60W power adapter) |
| ESD | Contact 6Kv, Air Gap 8Kv |
| Vibration Protection | GB/T2423.10 |
| Chassis Material | Aluminum-magnesium Alloy, Galvanized Steel |
| Mounting | Wall mount |
| OS Support | Windows? 10/linux |
| Dimension(W*H*D) | 389.9*249.9*85.8(mm) |
| Weight（KG） | 4.61(KG) |
| Model No. | Description |
| PPC-HW1562NBCT | （J1900,6*COM+6*USB） 15.6" Fanless Industrial Touch Screen Panel PC /1920*1080/EC3-T1962E-A|EC3b-H1962L-H/J1900/DDR3L 4G (Onboard 1-slot DDR3L laptop memory, up to 8G)/1*Msata,1*2.5" drive bay,Built-in 128G Msata/2*LAN (2*Intel I211/I210)/Built-in 6*RS232 (COM5 supports RS232/TTL,COM6 supports RS232/RS485)/1*HDMI,1*VGA/1*USB3.0,5*USB2.0/1*MIC in,1*Line out/1*MINI PCIE (Optionally supports WiFi or 4G function)/Built-in 12V5A60W power adapter/Wall mount,embedded/Windows 10/8/7/LINUX |
| PPC-HW1562NBCT-04 | 15.6" Fanless Industrial Touch Screen Panel PC /1920*1080/EC3-T4662-I/I7-4600U/4G (Onboard 1-slot DDR3L laptop memory,up to 8G)/1*Msata,1*2.5" drive bay, Built-in 128G MSATA SSD/2*USB3.0,4*USB2.0/1*VGA/Built-in 6*RS232 (COM1 optional)RS232/485,COM2 optional RS232/422/485)/2*LAN (Intel i211)/ Line-Out,MIC-In/1*Mini PCIE (Optionally supports WiFi and BT)/DC12V-24V 60W power adapter/Wall mount,Embedded/Windows 10/8/7/2008/Linux |
| PPC-HW1562NBCT-09 | 15.6" Fanless Industrial Touch Screen Panel PC /EC3-T6462E-A/1920*1080/J6412/8G(1*SO-DIMM Slot,DDR4 2666/2933/3200MHz,up to 32G)/1*2.5" drive bay,1*M.2(Key-M,2280,PCIE x2 NVME SDD) Built-in 128G SSD/2*HDMI/2*LAN (2*Intel I225-V)/3*USB3.0,3*USB2.0/6*COM (Built-in 6*RS232,COM6 optional RS485)/ 1*Audio Line-Out+MIC 2-in-1 (CTIA international standard)/1*Power button,1*SIM slot/1*M.2 (Key-B,3052, USB3.0+USB2.0, supports 5G module, 4G module requires an adapter card, Optionally), 1*MPCIE (Full height,PCIE+USB2.0,support for WIFI+BT) / 1*DC power supply connector (with threads) / Built-in DC12V input (with a 12V 60W power adapter) / Embedded, Wall mount, VESA mount/ Windows 10/Linux |
| PPC-HW1564NBCT-10（Turbo Boost disable） | 15.6" Fanless Industrial Touch Screen Panel PC /1920*1080/EC8-T31C64-A1/H310C chipset/I7-8700/8G (2*DDR4 SO-DIMM, up to 32G)/1*2.5",1*M.2 (Supports SATA SSD),built-in 128G SSD/4*LAN (Intel219+Intel210+2* Intel 226) / Built-in 6*RS232 (COM1-2 optional RS232/RS422/RS485)/4*USB3.0+4*USB2.0/1*HDMI/1*VGA/1*Backup button/1*Restore button/1*Remote-Switch/8*GPIO (4*GPI+4*GPO, external power supply, support 5V-24V)/1*SIM/1*M.2 (Key-B, 3042/3052, support 4G,5G)/1*M.2 (Key-M, 2280, support SATA SDD)/1*MPCIE (Full-height, PCIE+USB2.0 signal,supports WiFi/BT)/DC12V-24V,Built-in 19V 123W Power adapter/Embedded, Wall mount,VESA mount |
| PPC-HW1562NBCT-11 | 15.6" Fanless Industrial Touch Screen Panel PC /1920*1080/EC3-TB562E-A2/i5-1155G7/DDR4 8G (Onboard 2-slot DDR4,up to 64G)/1*M.2 (Key-M, 2280, SATA SSD Signal) Built-in M.2 128G SSD/1*M.2 (KEY-E, 2230, PCIE+USB2.0 Signal,Supports WiFi+BT)/1*M.2 (KEY-B,3052,PCIE/USB3.0+USB2.0 signal,support 5G/4G module)/6*USB3.0/6*RS232 (COM6 optional 232/485)/2*LAN (1*Intel I225+1*Intel I219)/2*HDMI/ Built-in 12V5A 60W Power Adapter/Wall mount |
