◆Aluminium-magnesium Alloy,Galvanised Steel
◆I7-4600U(2.1-3.3GHz,2C/4T)| Monitor | 15" |
| Resolution | 1024(H)*768(V) |
| Brightness | 350cd/㎡(Typ.) |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) |
| Touchscreen | 10-Point Industrial-Grade Capacitive Touchscreen |
| Processor | I7-4600U(Base frequency 2.1-3.3GHz, Dual-core, Quad-thread) |
| Chipset | SOC |
| BIOS | AMI UEFI |
| Memory | 1*SO-DIMM,DDR3L 1600 MHz up to 8 GB, Built-in 1*4G DDR3L 1600 laptop memory |
| Display | Intel?HD Graphics |
| Expansion Slot | 1*full size mini sata |
| Ethernet | 2*10/100/1000Mbps (2*Intel i211), Support Wake On Lan |
| Drive Bay | Supports 1*Msata, 1*2.5" drive bay, built-in 1*128G Msata SSD. |

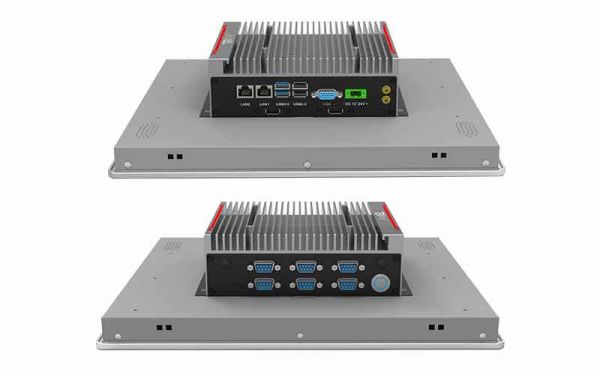

| I/O Interface | 1* VGA 2*LAN,10/100/1000Mbps (Intel) 6*COM (Built-in 6*RS232, COM1 optional RS485,COM2 optional 422/RS485) 4*USB2.0,2*USB3.0 1*MIC in,1* Line out 1*DC power supply connector |
| Operating Temperature | -10°C to 60°C, 5% to 95% (non-condensing) |
| Storage Temperature | -20°C to 75°C, 5% to 95% (non-condensing) |
| Power Supply | DC12V-24V wide voltage input |
| ESD | Contact 6Kv, Air Gap 8Kv |
| Vibration Protection | GB/T2423.10 |
| Chassis Material | Aluminum-magnesium Alloy, Galvanized Steel |
| Mounting | Embedded, Wall mount, VESA mount |
| OS Support | Windows? 10/8/7/2008/linux |
| Dimension(W*H*D) | 355.9*282.9*87.3(mm) |
| Weight（KG） | 4.99（KG） |
| Model No. | Description |
| PPC-H1562NBCT | 15" Fanless Industrial Touch Screen Panel PC /1024*768/EC3-T1962L-A|EC3b-H1962L-H/J1900/DDR3L 4G (onboard 1-slot DDR3L laptop memory,up to 8G)/1*Msata ,1*2.5" drive bay,built-in 128G Msata/2*LAN (2*Intel I211/I210)/Built-in 6*RS232 (COM5 supports RS232/TTL, COM6 supports RS232/RS485)/1*HDMI,1*VGA/1*USB3.0, 5*USB2.0/1*MIC in,1*Line out/1*MINI PCIE(Optionally supports WiFi or 4G function) / built-in 12V 5A 60W power adapter/Wall mount,Embedded/Windows 10/8/7/Linux |
| PPC-H1562NBCT-04 | 15" Fanless Industrial Touch Screen Panel PC /1024*768/EC3-T4662-I/I7-4600U/4G (Onboard 1-slot DDR3L laptop memory,up to 8G)/1*Msata,1*2.5" drive bay,built-in 128G Msata/2*USB3.0, 4*USB2.0/VGA/Built-in 6*RS232 (COM1 optional RS232/485,COM2 optional RS232/422/485)/2*Gigabit LAN (Intel i211)/ Line-Out,MIC-In/1*Mini PCIE (Optionally support WiFi and Bluetooth)/DC12V-24V 60W power adapter/Wall mount,Embedded/Windows ? 10/8/7/2008/Linux |
| PPC-H1562NBCT-09 | 15" Fanless Industrial Touch Screen Panel PC /1024*768/EC3-T6462L-A/J6412/8G(1*SO-DIMM Slot,DDR4 2666/2933/3200MHz, up to 32G)/1*2.5" drive bay,1*M.2 (Key-M,2280,PCIE x2 NVME SDD) built-in 128G SSD /2*HDMI/2*LAN (2*Intel I225-V)/3*USB3.0,3*USB2.0/6*COM (Built-in 6*RS232, COM6 optional RS485)/ 1*Audio Line-Out+MIC 2-in-1 (CTIA International standard)/1*Power button,1*SIM slot/1*M.2 (Key-B,3052, USB3.0+USB2.0,optionally supports 5G module,4G module requires an adapter card, Optionally),1*MPCIE (Full height,PCIE+USB2.0,supports WIFI+BT) / 1*DC power supply interface (with threads) / built-in DC12V input (with a 12V 60W power adapter) / Embedded, Wall mount,VESA mount /Windows 10/Linux |
| PPC-H1564NBCT-10（Turbo Boost disable） | 15" Fanless Industrial Touch Screen Panel PC /1024*768/EC8-T31C64-A/H310C chipset/I7-8700/8G (2*DDR4 SO-DIMM,up to 32G)/1*2.5" drive bay,1*M.2 (Supports SATA SSD),built-in 128G SSD/4*LAN (Intel219 + Intel210 +2*Intel226)/Built-in 6*RS232 (COM1-2 optional RS232/RS422/RS485)/4*USB3.0+4*USB2.0/1*HDMI/1*VGA/1*Backup button/1*Restore button/1*Remote-Switch/8*GPIO (4*GPI+4*GPO, external power supply,supports 5V-24V)/1*SIM/1*M.2 (Key-B, 3042/3052, supports 4G,5G)/1*M.2 (Key-M,2280,supports SATA SDD)/1*MPCIE (Full-height,PCIE+USB2.0 signal,support WiFi/BT)/DC12V-24V,Built-in 19V 123W power adapter/Embedded,Wall mount,VESA mount |
| PPC-H1562NBCT-11 | 15" Fanless Industrial Touch Screen Panel PC /1024*768/EC3-TB562L-A4/i5-1155G7/DDR4 8G (Onboard 2-slot DDR4,up to 64G)/1*M.2 (Key-M,2280,SATA SSD Signal) Built-in M.2 128G SSD/1*M.2 (KEY-E, 2230,PCIE+USB2.0 Signal,support WiFi+BT)/1*M.2 (KEY-B, 3052,PCIE/USB3.0+USB2.0 signal Support 5G/4G module)/6*USB3.0/6*RS232 (COM6 optional 232/485)/2*LAN (1*Intel I225+1*Intel I219)/2*HDMI/Built-in 12V 5A 60W Power Adapter/Wall mount |
