| Monitor | 12.1" |
| Resolution | 1024(H)*768(V) |
| Brightness | 500 cd/m2 |
| Viewing Angle | 85/85/85/85(Typ.)(CR≥10) |
| Touchscreen | 10-Point Industrial-Grade Capacitive Touchscreen |
| Processor | Intel 11th Gen I3, I5 high performance processor Built-in I5-1135G7(Base frequency 2.4 GHz, 4 cores, 8 threads) Built-in I3-1135G4(Base frequency 3.0 GHz, 2 cores, 4 threads) |
| BIOS | AMI UEFI |
| Memory | 2*SO-DIMM DDR4, up to 64G Bulit-in 1*8G DDR4 2666 laptop memory |
| Display | HDMI |
| Expansion Slot | 1*M.2 Key-E 2230 (Supports WIFI+BT) |
| Ethernet | 2*10/100/1000Mbps, support Wake On Lan |
| Drive Bay | 1*M.2 Key-M, supports SATA SSD 2280, built-in 1*128G M.2 SSD |

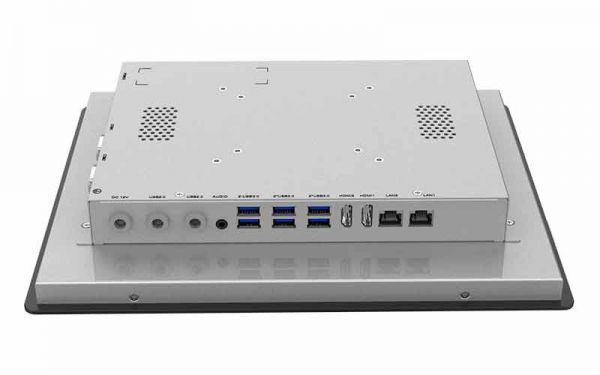

| I/O Interface | 2*HDMI 2* LAN（I219-LM 10/100/1000Mbps；I225-V 10/100/1000/2500Mbps） 2*COM (Built-in 2*RS232) 6*USB3.0 (Type-A), 2*USB2.0 (M10 5-pin Plastic Self-locking Push-pull Connector) 1* MIC In+Line Out (Combo), built-in speaker 1*Power button 1*DC input (M10 2-pin plastic self-locking push-pull connector) |
| Operating Temperature | -10℃-55℃, 5%～95%(non-condensing) |
| Storage Temperature | -10°C~60°C, 5% ~ 95% (non-condensing) |
| Power Supply | Built-in DC12V input |
| EMC | EMI contact 4Kv, Class A; Air gap 8Kv, Class A Radiated Immunity 80MHz-2000MHz, Class A Rated power frequency magnetic field 3A/m, 50/60Hz Class A Burst pulse 1KV, Class A Surge Differential 1kV, Common Mode 2kV, Class A RF conduction 80%AM 1kHz, Class A |
| Vibration Resistance | GB/T2423.10 |
| Protection Rating | Front panel complies with IP65 dust and waterproof |
| Chassis Material | High-strength aluminum alloy panel + high-quality Smooth galvanized steel sheet |
| Mounting | Panel Embedded, VESA Standard Mount |
| OS Support | Windows? 10/Linux |
| Dimensions(W*H*D) | 317*258*49.1（mm） |
| Weight（KG） | 2.80(KG) |
| Model No. | Description |
| PPC-H1222NBCT-11（For Medical Application） | 12.1" Industrial Touch Screen Panel PC / 1024*768 / EC3-T5B62L-A / i5-1155G7 / 2*SO-DIMM DDR4 supports up to 64GB, built-in 1*8GB DDR4 2666 laptop memory / 1*M.2 (Key-M, 2280, supports SATA SSD signal) Built-in M.2 128GB SSD / 2*LAN (1*Intel I225 + 1*Intel I219) / 2*COM (Built-in 2*RS232) / 6*USB3.0 (Type-A), 2*USB2.0 (M10 5-pin plastic self-locking push-pull connector) / 1*MIC In+Line Out (combo), built-in speaker / 1*M.2 (Key-E, 2230, supports WIFI+BT) / DC12V input, built-in 12V 120W adapter / Embedded, wall mount, VESA mount. |
