◆Aluminium alloy unibody forming
◆J1900( 2.0GHz,4C/4T)
◆2*10/100/1000Mbps Ethernet Port
◆1*HDMI,4*RS232,4*USB| Monitor | 10.4" |
| Resolution | 1024*768 |
| Brightness | 500cd/㎡(Typ.) |
| Viewing Angle | 85/85/85/85(Typ.)(CR≥10) |
| Touchscreen | 10-Point Industrial-Grade Capacitive Touchscreen |
| Processor | J1900（Base frequency 2.0GHz,Quad-core, Quad-thread) |
| Chipset | SOC |
| BIOS | AMI UEFI |
| Memory | 1*SO-DIMM,DDR3L 1600 MHz up to 8 GB, Built-in 1*4G DDR3L 1600 laptop memory |
| Display | Intel?HD Graphics |
| Expansion Slot | 1*full size mini pcie, Supports WIFI or 4G function(Optional) 1*full size mini sata |
| Ethernet | 2*10/100/1000Mbps (2*Intel I210/I211),Support Wake On Lan |
| Drive Bay | Supports 1*Msata,1*2.5" drive bay,built-in 1*128G Msata SSD. |

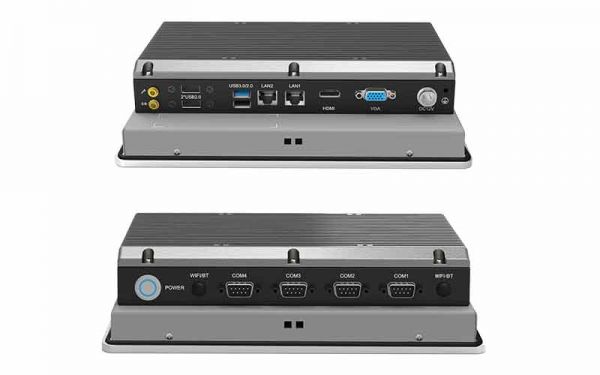

| I/O Interface | 1*HDMI,1*VGA; 2* LAN,Support 2*10/100/1000Mbps (2*Intel I210/I211) 4*COM (Built-in 4*RS232, COM1 optional RS232/TTL, COM2 optional RS232/RS485) 4*USB(1*USB3.0,3*USB2.0);1*MIC In,1*Line Out,1*DC input |
| Operating Temperature | -10℃-60℃,5%～95%(non-condensing) |
| Storage Temperature | -20℃-60℃,5%～95%(non-condensing) |
| Power Supply | DC12V input |
| ESD | Contact 6Kv,Air Gap 8Kv |
| Vibration Resistance | GB/T2423.10 |
| Protection class | Front panel meets IP65 dust and waterproof rating |
| Chassis Material | High strength aluminum alloy & galvanized steel plain sheet |
| Mounting | Panel Embedded,VESA Mount standard |
| OS Support | Windows? 10/8/7/2008/linux |
| Dimension(W*H*D) | 258.3*209.6*66.9（mm） |
| Weight | 2.82（KG） |
| Model No. | Description |
| PPC-H1042NBCT | 10.4" Fanless Industrial Touch Screen Panel PC /1024*768/EC3-T1962L-A|EC3b-H1962L-H/J1900/DDR3L 4G (Onboard 1 slot DDR3L laptop memory, up to 8G)/1* Msata ,1*2.5" drive bay, built-in 128G Msata/2*LAN (2*Intel I211/I210)/4*RS232/1*HDMI, 1*VGA/1*USB3.0, 3*USB2.0/1*MIC in, 1*Line out/1*MINI PCIE (Optionally supports WiFi or 4G function)/Built-in 12V5A 60W power adapter/Wall mount, Embedded/Window 10/8/7/Linux |
| PPC-H1032NBCT-04 | 10.4" Fanless Industrial Touch Screen Panel PC /1024*768/EC3-T4662-I/I7-4600U/DDR3L 4G (Onboard 1 slot DDR3L laptop memory, up to 8G)/1*Msata, 1*2.5" drive bay, Built-in 128G Msata /2*USB3.0, 2*USB2.0/VGA/Built-in 3*RS232 (COM1 optional) RS485, COM2 optional 422/RS485)/2* Gigabit LAN(Intel i211 chip)/1*Mini PCIE(Support WiFi and Bluetooth, default is not equipped)/Line-Out, MIC-In/DC12V-24V 60W power adapter/Wall-mounted, Embedded /Windows? 10/8/7/2008/Linux |
| PPC-H1062NBCT-09 | 10.4" Fanless Industrial Touch Screen Panel PC /1024*768/EC3-T6462L-A/J6412/DDR4 8G (Onboard 1-slot DDR4 laptop memory, up to 32G)/1*M.2 (Key-M, 2280, PCIE x2 NVME SDD), 1*2.5" drive bay, built-in 128G SSD/3*USB3.0, 3*USB2.0/2*HDMI/6*COM (Built-in 6*RS232, COM6 optional RS485)/2*Gigabit LAN (Intel i225-v)/1*MINI PCIE (Optionally supports WiFi)/1*Audio Line-Out+MIC 2-in-1/DC12V 60W power adapter/Wall mount, Embedded/Windows?10/Linux/ |
| PPC-H1062NBCT-11 | 10.4" Fanless Industrial Touch Screen Panel PC /1024*768/EC3-TB562L-A4/i5-1155G7/DDR4 8G (Onboard 2-slot DDR4, up to 64G)/1*M.2 (Key-M, 2280, SATA SSD Signal) Built-in M.2 128G SSD/1*M.2 (KEY-E, 2230, PCIE+USB2.0 Signal Supports WiFi+BT)/1*M.2 (KEY-B, 3052, PCIE/USB3.0+USB2.0 signal Supports 5G/4G module)/6*USB3.0/6*RS232 (COM6 optional 232/485)/2*LAN (1*Intel I225+1*Intel I219)/2*HDMI/ Built-in 12V5A 60W power adapter/Wall mount |
