| Processor | Supports full series of 6/7/8/9th Gen Intel LGA1151 processors. Built-in i7-7700 CPU (3.6GHz, quad-core eight-thread) |
| Chipset | H110 Chipset |
| BIOS | AMI UEFI |
| Memory | 2*DIMM Slot, DDR4 2400, up to 32G. Built-in 16G DDR4 2400 desktop memory memory |
| Display | Intel? HD Graphics(VGA+HDMI+DVI) |
| Expansion Slot | 1*PCIEx16(supports half-height graphics cards, maximum performance graphics card GTX1650 4G) 1*PCIEx4 1*PCIEx1 4*PCI |
| Ethernet | 2*10/100/1000Mbps Support Wake On Lan |
| Drive Bay | Supports 6*3.5”hard drive bays, built-in 1*128G Msata SSD |
| I/O Interfaces | 1* VGA ，1*DVI，1* HDMI 2*10/100/1000Mbps 1*RS232 (expandable up to 6*RS232，with options for COM3-COM4 as RS232/485) 4*USB2.0；4*USB3.0 1*MIC in,1* Line out,1* Line in 1*PS/2 |
| Compatible Motherboard | Mini-ITX (170mm*170mm), Micro-ATX (245mm*245mm), ATX (305mm*245mm) motherboards; built-in Motherboard EC0-H1162E-4P (F8) |
| Operating Temperature | -10℃ to 60℃, 5%-95% (non-condensing) |
| Storage Temperature | -20℃ to 70℃, 5%-95% (non-condensing) |
| Power Supply | AC100-240V 1U ATX power supply 250W |
| ESD | Contact 4Kv, Air Gap 6Kv |
| Vibration Protection | GB/T2423.10 |
| Chassis Material | High-strength aluminum alloy panel |
| Mounting | Rack-mounted |
| OS Support | Windows? 10/8/7/2008/Linux |
| Dimensions (W*H*D) | 428 * 88.5 * 400 (mm) |
| Model No. | Description |

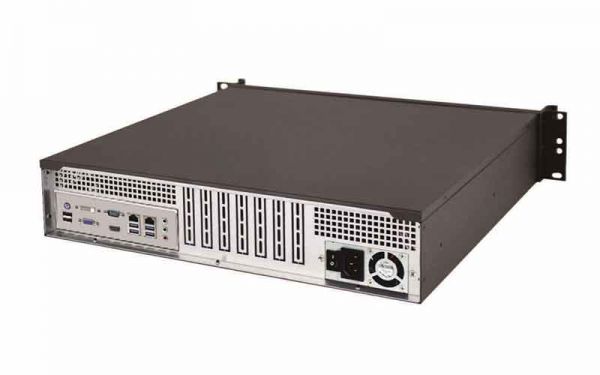

| IPC-H2207C | (Supports 6th, 7th, 8th, and 9th Gen CPUs, 4PCI+1PCIEx1+1PCIEx4+1PCIEx16) 2U high-performance rack-mounted industrial PC / EC0-H1162E-4P (F8) ECO-H1762E-4P / H110 chipset, H170 chipset / I7-7700 / 16GB (onboard 2 slots DDR4 desktop memory memory, up to 32GB) / 1*Msata, 3*SATA3, standard 128G Msata SSD / 4*USB3.0, 4*USB2.0 / 1*VGA, 1*DVI, 1*HDMI / built-in 1*RS232, up to 6RS232 (COM3-COM4 optional RS232/485) / 2*LAN (1Intel I219-LM, 1*Intel I211/I210) / 1*PS2 / 1*Line-in, 1*Line-out, 1*Mic-in / 1*MPCIE (full-height) / 1*PCIEx16, 1*PCIEx4, 1*PCIEx1, 4*PCI (only half-height cards) / AC100-240V ATX250W power supply / Windows 10/8/7/Linux / Rack-mounted |
| IPC-H2207C-02 | (Supports 4th Gen CPUs or Xeon E3-1200V3 series CPUs, 4PCI+1PCIEx1+1PCIEx4+1PCIEx16) 2U high-performance rack-mounted industrial PC / EC0-H8162-4P ECO-H8162-4P (F8) / H81 chipset / I5-4460 / 4GB (onboard 2 slots DDR3 desktop memory, max 16GB) / 1Msata, 1SATA3, 2SATA2, standard 128G Msata SSD / 2USB3.0, 4USB2.0 / 1VGA, 1DVI / Standard 2RS232, expandable to 6RS232 (COM3 optional RS232/485), each expansion port can only output one COM / 2LAN (2Intel I211/I210 chips) / 2PS2 / Line-in, Line-out, MIC-in / 1PCIEx16, 1PCIEx4, 1PCIEx1, 4PCI (only half-height cards can be used) / AC100-240V ATX250W power supply / Windows 10/8/7/Linux / Rack-mounted |
| IPC-H2207C-06 | (Support 10th and 11th Gen CPU, 2*PCI+3*PCIEx4+2*PCIEx16) 2U high-performance rack-mounted industrial PC /TATX-Q470-E621/Q470 chipset/I5-10400/8G (onboard 4-slot DDR4 desktop, max. 128G)/3*SATA3, 1*M.2(Key-M,2242/2280,PCIe x4/SATA SSD), built-in 128G SSD/5*USB3.0, 5*USB2.0/1*VGA, 1*HDMI, 1*DVI/built-in 1*RS232, can be expanded to lead 5*RS232 (COM2 optional RS232/422/485), each expansion bit can only lead to a COM/2*LAN (1*intel I219-LM chip, 1*Intel I210 chip)/1*PS2/Line-in, Line-out, MIC-in/1*MPCIE (full-height)/2*PCIEx16, 3*PCIEx4, 2*PCI (half-height card only)/AC100-240V wide voltage input ATX Power supply 300W/Windows 11|10|Linux/Rack-mounted |
| IPC-H2207C-09 | (Support 12th and 13th Gen CPU, 1*PCI+4*PCIEx4+2*PCIEx16) 2U high-performance rack-mounted industrial PC / TATX-Q670-E621/Q670 chipset / I5-12400/8G (onboard 4-slot DDR4 desktop, max. 128G) / 2*SATA3, 1*M.2(Key-M, 2242/2280,PCIe x4/SATA SSD), built-in 128G SSD/5*USB3.0,4*USB2.0/1*VGA,1*HDMI,1*DP/built-in 1*RS232, optional 5*RS232(COM2 optional RS232/422/485)/2*LAN(1*intel I219-LMchip, 1*Intel I210 chip)/1*PS2/Line-in, Line-out, MIC-in/1*PCI+4*PCIEx4+2*PCIEx16 (rate of only X8, chassis can only be used with half-height card)//AC100-240V wide-voltage input ATX power supply 300W/Windows 11 | 10 |Linux (Centos 8.5 (inclusive) or above, Ubantu 22.04 (inclusive) or above)/Rack-mounted |
| IPC-H2207C-10 | (Supports 6th, 7th, 8th, and 9th Gen CPUs, 2PCI+3PCIEx4+2PCIEx16) 2U high-performance rack-mounted industrial PC / EC0-T2762E-2P-A1 / Q270 chipset / I5-8400 / 8GB (onboard 4 slots DDR4 desktop memory, up to 64GB) / 1*M.2 (Key-M, 2242/2280, PCIe x4/SATA SSD), 2*SATA3, built-in 128G M.2 SSD / 4*USB3.0, 4*USB2.0 / 1*VGA, 1*DVI, 1*HDMI / Built-in 1*RS232, optional 6RS232 (COM3 optional RS232/422/485, COM4 optional RS232/485) / 2*LAN (1*Intel I219-LM, 1*Intel I225-V/1*PS2/Line-in、Line-out、MIC-in/ 2*PCI+3*PCIEx4+2*PCIEx16（only half-height cards）/AC100-240V ATX250W power supply/Windows 7|10|Linux（CentOS 8.5（inclusive）以上，Ubuntu 22.04 (inclusive) or above）/Rack-mounted |
