| Processor | On board J1900 (main frequency 2.0GHz, Quad-core & Quad-thread) |
| Chipset | SOC Chipset |
| BIOS | UEFI |
| Memory | Built-in 1 * 4G DDR3 1600 laptop memory, up to 8GB DDR3 SO-DIMM |
| Display | Intel? HD Graphics(VGA+LVDS) |
| Expansion Slot | 1 * MINI PCIE, supports 1 * horizontal full-height slot(Can only be used when Drive bay is not occupied.) |
| Ethernet | 1*LAN（Realtek），Support Wake On Lan |
| Drive Bay | Supports 1 * Msata, 2 * 2.5 "or 1 * 3.5" drive bay, built-in 1*128GB SSD |
| I/O Interfaces | 1*VGA； 1*LAN（Realtek），10/100/1000Mbps Built-in 1*RS232, optional 3 * RS232 (2 expanded) 1*USB3.0，5*USB2.0 1*Audio output; 1*MIC in,1* Line out 1 * DC Power Connector |
| Compatible Motherboard | Mini-ITX (170mm*170mm),Built-in motherboard EC7-H1941L |
| Operating Temperature | 0℃ to 60℃, 5%-95% (non-condensing) |
| Storage Temperature | -10℃ to 70℃, 5%-95% (non-condensing) |
| Power Supply | DC12V 60W Power adapter |
| ESD | Contact 4Kv, Air Gap 6Kv |
| Vibration Protection | GB/T2423.10 |
| Chassis Material | Thickened SGG galvanized steel sheet |
| Mounting | Rack-mounted |
| OS Support | Windows? 10/8/7/2008/Linux |
| Dimensions (W*H*D) | 430 * 44 * 250(mm) |
| Model No. | Description |

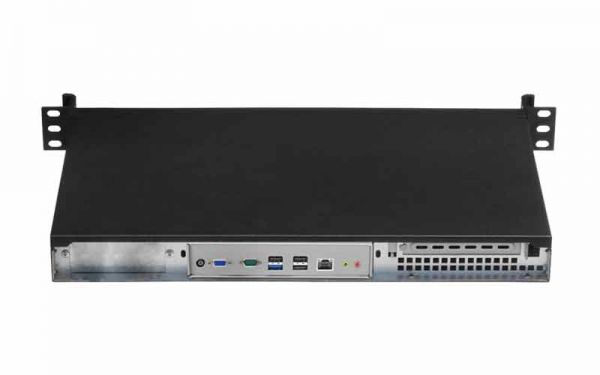

| IPC-H1107C-01 | 1U rack mounted industrial PC/EC7-H1941L/J1900/4G, supports up to 8GB DDR3 SO-DIMM/1 * Msata, 1 * SATA2.0, built-in 128G msata/1 * LAN (1 * Realtek 8111F chip)/built-in 1 * RS232, optional 3 * RS232 (2 expanded)/VGA+LVDS/1 * USB3.0, 5 * USB2.0/MIC in, Line out/1 * MINI PCIE/12V 60W power adapter/rack mounted |
| IPC-H1107C-03 | 1U rack mounted industrial PC/EC7-H1162 (F8)/H110 chipset (supports Intel Core 6th, 7th, 8th & 9th Gen)/i5-6400/4G (2-slot DDR4, supports up to 32GB)/2 * SATA3.0, built-in 128GB SSD/2 * LAN (2 * Realtek 8111F)/built-in 2 * RS232, optional 4 * RS232 (2expanded)/1 * HDMI+1 * VGA/2 * USB3.0, 10 * USB2.0/1 * MIC in, 1 * Line out/1 * PS2/1 * PCIEX16 (Can only be used when Drive bay is not occupied.)/AC100-240v ATX 250W Power supply/rack mounted |
| IPC-H1107C-05 | 1U rack mounted industrial PC/EC7-H3521 V3.0/Q75 chipset (supports Intel Core 2nd to 3rd Gen)/i5-3470/4G (1-slot DDR3，up to 8G)/1 * MSATA, 1 * SATA, built-in 128G MSATA SSD/1 * LAN (1 * Realtek 8111H/8111G)/Expandable 2 * RS232 (COM1-COM2 support RS232/485), default not expandable/1 * HDMI+1 * VGA/2 * USB3.0, 2 * USB2.0/1 * MIC in, 1 * Line out/DC12V 120W power adapter/rack mounted |
