| Processor | Supports full series of 4th Gen Intel LGA1150 processors or E3-1200V series CPUs. Built-in i5-4460 CPU (main frequency 3.2GHz, Quad-core & Quad-thread |
| Chipset | H81 |
| BIOS | AMI UEFI |
| Memory | 2* DIMM, up to 16 GB DDR3 1333/1600 MHz Built-in 1 * 4G DDR3 1600 laptop memory |
| Display | Intel? HD Graphics(VGA+DVI) |
| Expansion Slot | 1* PCIEx16 1* PCIEx1 4* PCI |
| Ethernet | 2*10/100/1000Mbps,Support Wake On Lan |
| Drive Bay | Supports 1*Msata, 2*3.5" and 1*2.5" drive bays, CD-ROM drive bay can be added, Built-in 1*128G 2.5" SSD. |

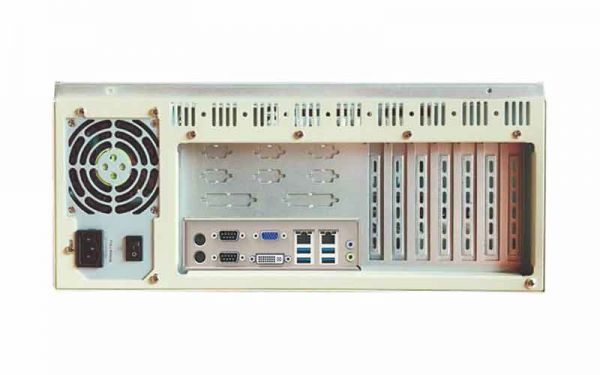

| I/O Interfaces | 1*VGA；1*DVI 2* LAN, 10/100/1000Mbps Built-in 2*RS232, 6*COM(6*RS232, COM3 supports RS232/485) 6*USB(2*USB3.0, 4*USB2.0)1*Line-in,1*Line-out,1*MIC-in,2*PS/2 |
| Compatible Motherboard | Mini-ITX (170mm*170mm), Micro-ATX (245mm*245mm) Built-in motherboard EC0-H8162-4P|ECO-H8162-4P(F8) |
| Operating Temperature | -10℃ to 60℃, 5%-95% (non-condensing) |
| Storage Temperature | -20℃ to 70℃, 5%-95% (non-condensing) |
| Power Supply | AC 220V input ATX 300W PSU supplied as standard (wide-range AC 90-264V optional) |
| ESD | Contact 4Kv, Air Gap 6Kv |
| Vibration Protection | GB/T2423.10 |
| Chassis Material | Thickened SGG galvanized steel sheet |
| Mounting | Rack-mounted |
| OS Support | Windows? 10/8/7/Linux |
| Dimensions (W*H*D) | 440*177.5*450(mm) |
| Model No. | Description |
| IPC-H610-02 | (Supports 4th Gen or E3-1200V series CPU, 4*PCI+1*PCIEx1+1*PCIEx4+1*PCIEx16) Rack-mounted Industrial PC /EC0-H8162-4P|ECO-H8162-4P(F8)/H81 chipset/I5-4460/4GB (onboard 2-slot DDR3 desktop memory, up to 16G)/1*Msata, 1*SATA3, 1*SATA2, Built-in 128G Msata SSD/2*USB3.0, 4*USB2.0/1*VGA, 1*DVI/built-in 2*RS232, optional 6*RS232 (COM3 optional RS232/485)/2*LAN (2*Intel I211)/2*PS2/Line-in, Line-out, MIC-in/1*PCIEx16, 1*PCIEx4, 1*PCIEx1, 4*PCI/AC 220V input ATX 300W PSU supplied as standard (wide-range AC 90-264V optional)/Windows 10|8|7|Linux/Rack-mounted |
| IPC-H610-03 | (Supports 6th and 7th Gen CPU, 4*PCI+1*PCIEx1+1*PCIEx4+1*PCIEx16)Rack-mounted Industrial PC /EC0-H1162E-4P(F8)|ECO-H1762E-4P/H110 chipset |H170 chipset/I5-6400/8GB (onboard 2-slot DDR4 desktop memory, up to 32G)/1*Msata, 2*SATA3,Built-in 128G Msata SSD/4*USB3.0, 4*USB2.0/1*VGA, 1*DVI, 1*HDMI/built-in 1*RS232, optional 6*RS232 (COM3, COM4 optional RS232/485) /2*LAN (1*Intel I211/I210, 1*Intel I219-LM)/1*PS2/1*Line-in, 1*Line-out, 1*Mic-in/ 1*PCIEx16, 1*PCIEx4, 1*PCIEx1, 4*PCI/AC 220V input ATX 300W PSU supplied as standard (wide-range AC 90-264V optional)/Windows 10|8|7|Linux/Rack-mounted |
| IPC-H610-09 | (Support 10th and 11th Gen CPU, 2*PCI+3*PCIEx4+2*PCIEx16) Rack-mounted Industrial PC/TATX-Q470-E621/Q470 Chipset/I5-10400/8G (Onboard 4-slot DDR4 Desktop, Max. 128G)/2*SATA3, 1*M.2(Key-M, 2242/2280,PCIe x4/SATA SSD), built-in 128G SSD/5*USB3.0, 5*USB2.0/1*VGA,1*HDMI,1*DVI/built-in 1*RS232, optional 5*RS232(COM2 optional RS232/422/485)/2*LAN(1*intel I219-LM chip,1*Intel I210 chip)/1*PS2/Line-in, Line-out, MIC-in/2*PCIEx16,3*PCIEx4,2*PCI/AC 220V input ATX 300W PSU supplied as standard (wide-range AC 90-264V optional)/Windows 11|10|Linux/Rack-mounted |
| IPC-H610-11 | (Support 12th and 13th Gen CPU, 2*PCIEx16, 3*PCIEx4, 1*PCI) 4U High-performance Rack-mounted Industrial PC/TATX-Q670-E621/Q670 chipset/built-in I5-12400 CPU/built-in 8G RAM (4*DIMM, max. expandable up to 128 GB)/1*M.2 2242/2280 ( PCIE NVMe/SATA), 2*3.5" + 1*2.5" hard drive bay, support optical drive bay, built-in M.2 128G solid state/2*LAN (PCIE NVMe/SATA), 2*3.5-inch + 1*2.5-inch hard drive bay, support for optical drive bay, standard M.2 128G solid state/2*LAN (1*intel I219-V chip, 1*Intel I210 chip)/built-in 1*RS232, optional 5*COM (COM2 can be optional RS232/RS422/RS485) /1*vga;1*dp;1*hdmi/5 x USB 3.0;4*USB2.0/2*PCIE X16(rate only X8),3*PCIEx4(gen4),1*PCIEx4(gen3),1*PCI slot1 *M.2 (Key E, 2230) support WiFi/AC 220V input ATX 650W PSU supplied as standard (wide-range AC 90-264V optional) /Windows? 11/10/linux (Centos 8.5 (incl.) or above, Ubuntu 22.04 (incl.) or above) /Rack-mounted |
| IPC-H610-12 | (Supports 6, 7, 8, 9 Gen CPU, 2*PCI+3*PCIEx4+2*PCIEx16) Rack-mounted Industrial PC EC0-T2762E-2P-A1/Q270 chipset/I5-8400/8GB (onboard 4-slot DDR4 desktop memory, up to. 64G)/1*M.2(Key-M, 2242/2280, PCIe x4/SATA SSD),2*SATA3,Built-in 128G M.2 SSD/ 4*USB3.0,4*USB2.0/1*VGA, 1*DVI,1*HDMI/built-in 1*RS232, optional 6*RS232 (COM3 optional RS232/422/485, COM4 optional RS232/485)/2*LAN (1*Intel I225-V, 1*Intel I219-LM)/1*PS2/Line-in, Line-out, MIC Line-in/ 2*PCI+3*PCIEx4+2*PCIEx16/AC 220V input ATX 300W PSU supplied as standard (wide-range AC 90-264V optional)/Windows 7|10|Linux (CentOS 8.5 (inclusive) or above, Ubuntu 22.04 (inclusive) or above)/Rack-mounted |
