| Processor | Supports full series of 4th Gen Intel LGA1150 processors or E3-1200V series CPUs. Built-in i5-4460 CPU (main frequency 3.2GHz, Quad-core & Quad-thread |
| Chipset | H81 |
| BIOS | AMI UEFI |
| ?Memory | 2* DIMM, up to 16 GB DDR3 1333/1600 MHz. Built-in 1 * 4G DDR3 1600 laptop memory |
| Display | Intel? HD Graphics(VGA+DVI) |
| Expansion Slot | 1* PCIEx16 1* PCIEx4 1* PCIEx1 4* PCI |
| Ethernet | 2*10/100/1000Mbps (Intel chipset)，Support Wake On Lan |
| Drive Bay | Supports 1*Msata, 1*2.5" and 1*3.5" drive bays, built-in 1*128G Msata SSD. |

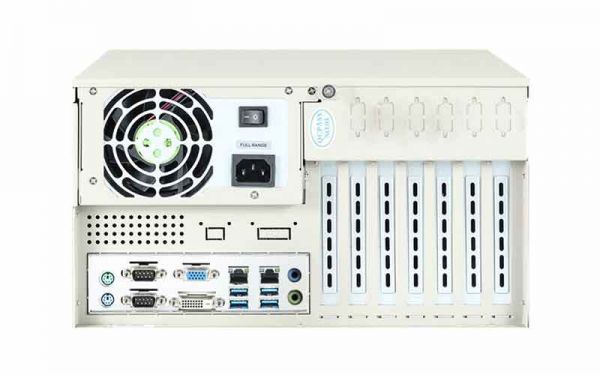

| ?I/O Interfaces | 1*VGA；1*DVI 2* LAN, 10/100/1000Mbps Built-in 2*RS232,optional 6*COM (6*RS232, COM3 supports RS232/485) 6*USB (2*USB3.0, 4*USB2.0) 1*Line-in, 1*Line-out, 1*MIC-in 2*PS/2 |
| Compatible Motherboard | Mini-ITX motherboard (170mm*170mm), Micro-ATX motherboard (245mm*245mm), ATX motherboard (305mm*245mm) Built-in motherboard EC0-H8162-4P|ECO-H8162-4P(F8) |
| ?Operating Temperature | -10℃ to 60℃, 5%-95% (non-condensing) |
| Storage Temperature | -20℃ to 70℃, 5%-95% (non-condensing) |
| Vibration Protection | GB/T2423.10 |
| Mounting | Wall-mounted、Rack mounted |
| ?Power Supply | AC 220V input ATX 300W PSU supplied as standard (wide-range AC 90-264V optional) |
| ESD | Contact 4Kv, Air Gap 6Kv |
| Chassis Material | High quality blossom-less galvanized sheet |
| OS Support | Windows? 10/8/7/Linux |
| Dimensions (W*H*D) | 323*180*330(mm) |
| Model No. | Description |
| IPC-H607-02 | (Supports 4th Gen or E3-1200V series CPU, 4*PCI+1*PCIEx1+1*PCIEx4+1*PCIEx16) Wall-mounted Industrial PC/EC0-H8162-4P|ECO-H8162-4P(F8)/H81 chipset/I5-4460/4GB (onboard 2-slot DDR3 desktop memory, up to 16G)/1*Msata，1*SATA3，1*SATA2，built-in 128G Msata SSD /2*USB3.0，4*USB2.0/1*VGA，1*DVI/built-in 2*RS232,optional 6*RS232 (COM2 optional RS232/422/485)/2*LAN (2*Intel I211) /2*PS2/Line-in，Line-out，MIC-in/1*PCIEx16，1*PCIEx4，1*PCIEx1，4*PCI/AC 220V input ATX 300W PSU supplied as standard (wide-range AC 90-264V optional)/Windows 10|8|7|Linux/Wall-mounted，Rack mounted |
| IPC-H607-03 | (Supports 6th, 7th, 8th, 9th Gen CPU, 4*PCI+1*PCIEx1+1*PCIEx4+1*PCIEx16) Wall-mounted Industrial PC/EC0-H1162E-4P(F8)| ECO-H1762E-4P/H110 chipset|H170 chipset/I5-6400/8GB (onboard 2-slot DDR4 desktop memory, up to 32G)/1*Msata，2*SATA3，built-in 128G Msata SSD/4*USB3.0，4*USB2.0/1*VGA，1*DVI，1*HDMI/built-in 1*RS232，optional 6*RS232（COM3，COM4 optional RS232/485）/2*LAN (1*intel I211/I210 chip, 1*Intel I219-LM chip)/1*PS2/1*Line-in, 1*Line-out, 1*Mic-in/1*MPCIE (full-height)/ 1*PCIEx16, 1*PCIEx4, 1*PCIEx1, 4*PCI/AC 220V input ATX 300W PSU supplied as standard (wide-range AC 90-264V optional)/Windows 10|8|7|Linux/Wall-mounted、Rack mounted |
| IPC-H607-07 | (Support 10th and 11th Gen CPU, 2*PCI+3*PCIEx4+2*PCIEx16) Wall-mounted Industrial PC/TATX-Q470-E621/Q470 chipset/I5-10400/8G (on-board 4-slot DDR4 desktop, memory, up to 128G)/2*SATA3, 1*M.2(Key-M, 2242/2280.PCIe x4/SATA SSD), built-in 128G SSD/5*USB3.0, 5*USB2.0/1*VGA, 1*HDMI,1*DVI/built-in 1*RS232, optional 5*RS232(COM2 optional RS232/422/485)/2*LAN(1*intel I219/I210 chip.1*Intel I219-LM chip)/1*PS2/Line-in, Line-out, MIC-in/2*PCIEx16,3*PCIEx4,2*PCI/AC 220V input ATX 300W PSU supplied as standard (wide-range AC 90-264V optional)/Windows 11|10|Linux/Wall-mounted, Rack mounted |
| IPC-H607-08 | (Supports 6th, 7th, 8th, 9th Gen CPU, 2*PCI+3*PCIEx4+2*PCIEx16) Wall-mounted Industrial PC/EC0-T2762E-2P-A1/Q270 Chipset/I5-8400/8GB (Onboard 4-slot DDR4 Desktop memory, up to 64G)/1*M.2(Key-M, 2242/2280,PCIe x4/SATA SSD),2*SATA3,built-in 128G M.2 SSD/4*USB3.0，4*USB2.0/1*VGA，1*DVI，1*HDMI/built-in 1*RS232，optional 6*RS232(COM3 optional RS232/422/485,COM4 optional RS232/485)/2*LAN (1*intel I225-V, 1*Intel I219-LM)/1*PS2/Line-in, Line-out, MIC-in/ 2*PCI+3*PCIEx4+2*PCIEx16/AC 220V input ATX 300W PSU supplied as standard (wide-range AC 90-264V optional)/Windows 7|10|Linux (CentOS 8.5 (incl.) or above, Ubuntu 22.04 (incl.) or above)/Wall-mounted, Rack mounted |
| IPC-H607-09 | (Support 12th and 13th Gen CPU, 1*PCI+4*PCIEx4+2*PCIEx16) Wall-mounted Industrial PC/TATX-Q670-E621/Q670 Chipset/I5-12400/8G (Onboard 4-slot DDR4 Desktop, max. 128G)/2*SATA3, 1*M.2(Key-M, 2242/2280,PCIe x4/SATA SSD), built-in 128G SSD/4*USB3.0, 4*USB2.0/1*VGA, 1*HDMI,1*DP/built-in 1*RS232, optional 5*RS232(COM2 optional RS232/422/485)/2*LAN (1*intel I210 chip, 1*Intel I219-LM chip).Intel I219-LM chip)/1*PS2/Line-in, Line-out, MIC-in/1*PCI+4*PCIEx4+2*PCIEx16 (rate only X8)/AC 220V input ATX 300W PSU supplied as standard (wide-range AC 90-264V optional)/Windows 11|10|Linux (CentOs) 8.5 (inclusive) or above, Ubntu 22.04 (inclusive) or above)/Wall-mounted, Rack mounted |
