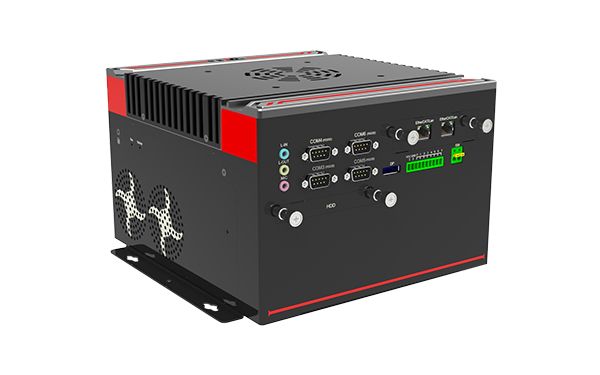

◆Aluminum alloy unibody,T-MOD Module
◆Supports Intel® Core?12/13/14th Gen
◆1* VGA/1* HDMI/6*COM / 4*LAN / 8*USB
◆-10 ~ 60℃ Extend Temperature Operating
| Processor | Supports 65W and lower 12th/13th/14th Gen Intel Core i7/i5/i3 series desktop processors. Base config：I5-12400 CPU (Base Frequency 2.5GHz, Turbo Boost 4.4GHz, 6 cores, 12 threads). |
| 65W CPU | Supports 12th/13th/14th Gen I3, I5, I7 Desktop CPUs |
| Chipset | H610 |
| BIOS | AMI UEFI |
| ?Display | Integrated graphics (VGA+HDMI+DP) |
| Memory | 2*SO-DIMM Slots, DDR4 2400, up to 32GB. Base Config：8GB DDR4 2666 laptop memory, dual-channel. |
| Drive Bay | 1*M.2 (KEY-M, 2280, PCIEx4 NVME and SATA adaptable) 1*2.5" HDD slot (7mm/15mm). Base Config：1*128GB SSD. |
| Ethernet | 1*Intel I219 (10/100/1000Mbps, supports Wake-on-LAN). 3*Intel I210 (10/100/1000Mbps adaptive Ethernet). |
| Expansion Slots | 1*M.2 (KEY-B, 3042/3052, PCIe+USB3.0 supports 4G/5G modules) 1*MINI PCIe (full height, PCIe+USB2.0 signals, supports WiFi module) 1*PCIEx16 1*PCIEx4 Max. size of Graphics card：190*90*50 |
| I/O Interface | 1* VGA,1* HDMI,1*DP,4*LAN 6*COM (Base configuration 6*RS232, COM1-2 optional RS232/422/485, COM6 optional RS232/TTL) 4*USB3.0,4*USB2.0 Supports T-MOD module expansion (Optional 2*RJ45/2*CAN/12*DI+12*DO) Audio：1*MIC in,1*Line out,1*Line in 1*Power button, 1*Restart button, 1*Remote switch, 1*Restore button, 1*Backup button, 1*SIM slot 1*DC IN |
| ?Operating Temperature | -10°C ~ 60°C,5%~95% (non-condensing) |
| Storage Temperature | -20°C ~ 75°C,5% ~ 95% (non-condensing) |
| ?Power Supply | DC12~24V, Base Config. with 19V 123W power adapter |
| ESD | Contact 6kV,Air 8kV |
| Vibration Resistance | GB/T2423.10 |
| Chassis Material | Aluminum-magnesium alloy,galvanized steel |
| Mounting | Wall mount,VESA standard |
| OS Support | Windows 10/Ubuntu18.04 or above/CentOS or above/Linux (Kernel version 4.15 or above) |
| Dimensions (W*H*D) | 220*240*150mm |
| Weight (KG) | 4.6(KG) |
| Model No. | Description |
| MBOX-T1700DH-02 | (Turbo Boost Enabled, Triple Display, 1*PCIe x16 +1*PCI, i5-12400, 8GB, 128GB) High-performance Expansion 2-slot Box PC/H610 Chipset/CP-TH610D/i5-12400/8GB (2*DDR4 SO-DIMM, up to 32GB)/1*2.5” drive bay, 1*M.2 (supports SATA SSD), Standard config. 128GB SSD/4*LAN (Intel I219 + 3*Intel I210)/6*RS232 (COM1-2 optional RS232/RS422/RS485)/4*USB3.0 +4*USB2.0/1*HDMI/1*VGA/1*DP/1*Backup button/1*Restore button/1*Remote Switch/Supports T-MOD module expansion (2*RJ45, 2*CAN, or 12*DI+12*DO)/1*SIM slot/1*M.2 Key-B (3042/3052, supports 4G/5G)/1*M.2 (Key-M 2280, supports PCIe x4 NVMe or SATA SSD)/1*MPCIe (Full-height, PCIe + USB2.0 signals, supports WiFi/BT)/DC 12V-24V input, standard config. 19V 123W Power Adapter/Wall mount, VESA standard. |
| MBOX-T1700DH-04 | (Turbo Boost Enabled, Triple Display, 2*PCI, i5-12400, 8GB, 128GB) High-performance Expansion 2-slot Box PC/H610 Chipset/CP-TH610D/i5-12400/8GB (2*DDR4 SO-DIMM, up to 32GB)/1*2.5” drive bay, 1*M.2 (supports SATA SSD), Standard config. 128GB SSD/4*LAN (Intel I219 + 3*Intel I210)/6*RS232 (COM1-2 optional RS232/RS422/RS485)/4*USB3.0 +4*USB2.0/1*HDMI/1*VGA/1*DP/1*Backup button/1*Restore button/1*Remote Switch/Supports T-MOD module expansion (2*RJ45, 2*CAN, or 12*DI+12*DO)/1*SIM slot/1*M.2 Key-B (3042/3052, supports 4G/5G)/1*M.2 (Key-M 2280, supports PCIe x4 NVMe or SATA SSD)/1*MPCIe (Full-height, PCIe + USB2.0 signals, supports WiFi/BT)/DC 12V-24V input, standard config. 19V 123W Power Adapter/Wall mount, VESA standard. |
