| Processor | upports 28W or lower processor：J1900, J6412, N95, ?Intel Core i-series Mobile Processors 6th / 7th / 8th / 9th / 10th / 12th / 13th Gen |
| Chipset | SOC |
| BIOS | AMI UEFI |
| ?Display | Integrated Graphics (VGA+HDMI) |
| Memory | 1* SO-DIMM slot, DDR4 2400 MHz, supports up to 32GB Standard Specs：1*8G DDR4 2666 MHz laptop memory double channels |
| Drive Bay | 1*M.2 (KEY-M, 2280, PCIEx4 NVME and SATA adaptive) 1*2.5" drive bay (7mm/15mm) Standard specs：128G SSD |
| Ethernet | 2*Intel I210 (10/100/1000Mbps) |
| Expansion Slots | 1*M.2 (KEY-B, 3042/3052, PCIE+USB3.0 supports 4G/5G modules) 1*MINI PCIE (full-height, PCIE+USB2.0 signal) T-MOD (modules optional)：4 * USB2.0, 2 * 232/422/485, 2 * Intel 210 GbE LAN, 12*DI + 12*DO, 2 * CAN bus 2.0 AB |
| I/O Interface | 1* VGA,1* HDMI,2LAN 2*COM (Standard specs |
| ?Operating Temperature | -10℃ to 60℃, 5% to 95% (non-condensing) |
| Storage Temperature | -20℃ to 75℃, 5% to 95% (non-condensing) |
| ?Power Supply | DC 12~24V, standard specs |
| ESD | Contact-type 6Kv, air gap 8Kv |
| Vibration Resistance | GB/T2423.10 |
| Chassis Material | Aluminum-magnesium alloy, galvanized steel |
| Mounting | Wall mount,VESA standard |
| OS Support | (J6412/N95) Windows 10/Ubuntu18.04 以上/centos 8 以上/Linux (J6412/N95) Windows 10 / Ubuntu 18.04 or above / CentOS 8 or above / Linux |
| Dimensions (W*H*D) | 200*70*150（mm) |
| Weight (KG) | / |
| Model No. | Description |

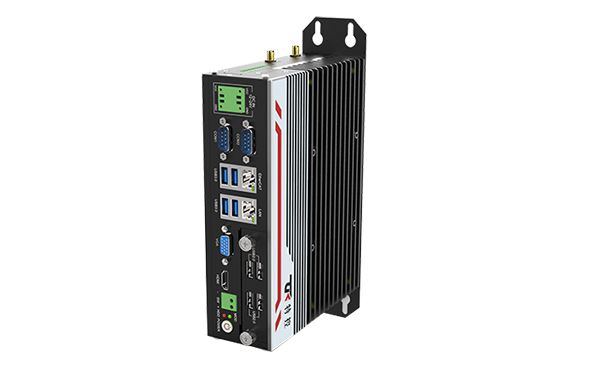

| MBOX-TJ9 | Modular Fanless Industrial PC / J1900 / 8GB DDR3L 1333 (Max. 8GB) / 1*M.2 (Key-M, 2280, SATA drive bay), 1*2.5" drive bay, standard specs：128GB M.2 SSD / 1*USB 3.0, 3*USB 2.0 / 1*VGA / 1*HDMI / Standard specs：2*RS232 (COM1-2 optional RS232/422/485) / 2*LAN (Intel I210 Chipset) / 1*M.2 (Key-B, 3042/3052, PCIe+USB 2.0/3.0, Supports 4G/5G Modules[1]) / 1*Mini PCIe (Full Height, PCIe+USB 2.0, optional supports Wi-Fi/BT) / Supports 12-24V DC Input, standard specs：DC 12V 60W Power Adapter / Backup & restore button (Windows-Only) / Wall mount, Embedded, Rail mount / Optional one TD Module |
| MBOX-TJ6 | Modular Fanless Industrial PC / J6412 / 8GB DDR4 (Max. 16GB) / 1*M.2 (Key-M, 2280, SATA drive bay), 1*2.5" drive bay, standard specs：128GB M.2 SSD / 2*USB 3.0, 2*USB 2.0 / 1*VGA / 1*HDMI / standard specs：2*RS232 ( COM1-2 optional RS232/422/485) / 2*LAN (Intel I210 Chipset) / 1*M.2 (Key-B, 3042/3052, PCIe+USB 2.0/3.0, Supports 4G/5G Modules[1]) / 1*Mini PCIe (Full Height, PCIe+USB 2.0, optional supports Wi-Fi/BT) / 12-24V DC Input standard specs：DC 12V 60W Power Adapter / Backup & restore button (Windows-Only) / Wall mount, Embedded, Rail mount /Optional one TD Module |
| MBOX-TN9 | Modular Fanless Industrial PC / N95 / 8GB DDR4 (Max. 16GB) / 1*M.2 (Key-M, 2280, SATA drive bay), 1*2.5" drive bay, standard specs：128GB M.2 SSD) / 2*USB 3.0, 2*USB 2.0 / 1*VGA, 1*HDMI / standard specs：2*RS232 ( COM1-2 optional RS232/422/485) / 2*LAN (Intel I210 Chipset) / 1*M.2 (Key-B, 3042/3052, PCIe+USB 2.0/3.0, Supports 4G/5G Modules[1]) / 1*Mini PCIe (Full Height, PCIe+USB 2.0, optional supports Wi-Fi/BT) / 12-24V DC Input, standard specs：DC 12V 60W Power Adapter / Backup & restore button (Windows-Only) / Wall mount, Embedded, Rail mount / Optional one TD Module |
| MBOX-T06 | Modular Fanless Industrial PC / i5-6200U CPU / 8GB DDR4 (Max. 16GB) / 1*M.2 (Key-M, 2280, SATA drive bay), 1*2.5" drive bay, standard specs：128GB M.2 SSD) / 4*USB 3.0 / 1*VGA, 1*HDMI / standard specs：2*RS232 ( COM1-2 optional RS232/422/485) / 2*LAN (Intel I210 Chipset) / 1*M.2 (Key-B, 3042/3052, PCIe+USB 2.0/3.0, Supports 4G/5G Modules[1]) / 1*Mini PCIe (Full Height, PCIe+USB 2.0, optional supports Wi-Fi/BT) / 12-24V DC Input standard specs：DC 12V 60W Power Adapter / Backup & restore button (Windows-Only) / Wall mount, Embedded, Rail mount |
| MBOX-T07 | Modular Fanless Industrial PC / i5-7200U CPU / 8GB DDR4 (Max. 16GB) / 1*M.2 (Key-M, 2280, SATA drive bay), 1*2.5" drive bay standard specs：128GB M.2 SSD / 4*USB 3.0 / 1*VGA, 1*HDMI / standard specs： 2*RS232 ( COM1-2 optional RS232/422/485) / 2*LAN (Intel I210 Chipset) / 1*M.2 (Key-B, 3042/3052, PCIe+USB 2.0/3.0, Supports 4G/5G Modules[1]) / 1*Mini PCIe (Full Height, PCIe+USB 2.0, optional supports Wi-Fi/BT) / 12-24V DC Input, standard specs：DC 12V 60W Power Adapter / Backup & restore button (Windows-Only) / Wall mount, Embedded, Rail mount |
| MBOX-T10 | Modular Fanless Industrial PC / i5-10210U CPU / 8GB DDR4 (Max. 16GB) / 1*M.2 (Key-M, 2280, SATA drive bay), 1*2.5" drive bay standard specs：128GB M.2 SSD / 4*USB 3.0 / 1*VGA, 1*HDMI / standard specs：2*RS232 ( COM1-2 optional RS232/422/485) / 2*LAN (Intel I210 Chipset) / 1*M.2 (Key-B, 3042/3052, PCIe+USB 2.0/3.0, Supports 4G/5G Modules[1]) / 1*Mini PCIe (Full Height, PCIe+USB 2.0, optional supports Wi-Fi/BT) / 12-24V DC Input standard specs：DC 12V 60W Power Adapter / Backup & restore button (Windows-Only) / Wall mount, Embedded, Rail mount |
| MBOX-T12 | Modular Fanless Industrial PC / i5-1235U CPU / 8GB DDR4 (Max. 32GB) / 1*M.2 (Key-M, 2280, SATA drive bay), 1*2.5" drive bay, standard specs：128GB M.2 SSD / 4*USB 3.0 / 1*VGA, 1*HDMI /standard specs： 2*RS232 ( COM1-2 optional RS232/422/485) / 2*LAN (Intel I210 Chipset) / 1*M.2 (Key-B, 3042/3052, PCIe+USB 2.0/3.0, Supports 4G/5G Modules[1]) / 1*Mini PCIe (Full Height, PCIe+USB 2.0, optional supports Wi-Fi/BT) / 12-24V DC Input, standard specs：12V 128W Power Adapter / Backup & restore button (Windows-Only) / Wall mount, Embedded, Rail mount |
| MBOX-T13 | Modular Fanless Industrial PC / i5-1335U CPU / 8GB DDR4 (Max. 32GB) / 1*M.2 (Key-M, 2280, SATA drive bay), 1*2.5" drive bay standard specs：128GB M.2 SSD) / 4*USB 3.0 / 1*VGA, 1*HDMI / standard specs：2*RS232 ( COM1-2 optional RS232/422/485) / 2*LAN (Intel I210 Chipset) / 1*M.2 (Key-B, 3042/3052, PCIe+USB 2.0/3.0, Supports 4G/5G Modules[1]) / 1*Mini PCIe (Full Height, PCIe+USB 2.0, optional supports Wi-Fi/BT) / 12-24V DC Input, standard 12V 128W Power Adapter / Backup & restore button (Windows-Only) / Wall mount, Embedded, Rail mount |
