◆fully sealed aluminium alloy case
◆Supports Intel® Core?6/7/8/9th Gen
◆1* VGA/1* HDMI/3*COM / 6*LAN / 4*USB
◆0 ~ 60℃ Extend Temperature Operating
| Processor | Support up to 65W , 6/7/8/9th Gen, LGA 1151 Intel Core i7/i5/i3 series processors Buil-in i7-8700T CPU (2.4GHz, Turbo Boost 4GHz, 6 cores and 12 threads) |
| 65W CPU | Support 6/7/8/9th Gen I3.I5.I7 standard voltage CPU (such as i3-6100.i5-7400,i7-8700,i5-9400...) |
| 35W CPU | Support 6/7/8/9th Gen I3.I5.I7 low power CPU (such as i3-6100T.i5-6500T,i7-6700T,i7-7700T, i5-8500T, i7-8700T, I7-9700T...) |
| Chipset | H110 |
| ?Display | Integrated Graphics (1*HDMI+1*VGA, support two separate display) |
| Memory | 1*SO-DIMM Slot, DDR4 2400MHz, up to 32G Built-in 1*8G DDR4 2666 laptop memory |
| Hard drive bays | 1*2.5" drive bay 1*MSATA |
| Network Ports | 1*10/100/1000Mbps (Intel I219) 1*10/100/1000Mbps (Intel I210) 4*10/100/1000Mbps (POE Inetel I210) |
| I/O Interface | 1* HDMI, 1*VGA (Support support two separate display) 6*LAN, supports 10/100/1000Mbps? ? 3*COM (Built-in 3*RS232, COM1-2 optional RS232/RS485) 4*USB3.0 1*Audio Line-Out+MIC 2-in-1 32*GPIO (16*GPI+16*GPO) with isolation, support 5V-24V external power supply 4* vision light source control, Support external trigger 1* Metal switch button with light 1*4P Phoenix |
| ?Operating Temperature | 0°C - 60°C,5% - 95% (non-condensing) |
| Storage Temperature | -20℃-85℃,5%～95%(non-condensing) |
| ?Power Supply | Built-in DC 24V (with 24V 220W power adapter) |
| ESD | Contact-type 6Kv, air gap 8Kv electromagnetic interference |
| Anti vibration | GB/T2423.10 |
| Chassis Material | Aluminum-magnesium alloy, galvanized steel |
| Mounting | Wall mount |
| Operating system | Windows 7/8/10/Linux |
| Dimensions (W*H*D) | 212*106*167（mm） |
| Weight (KG) | 4.24（KG） |
| Model No. | Description |

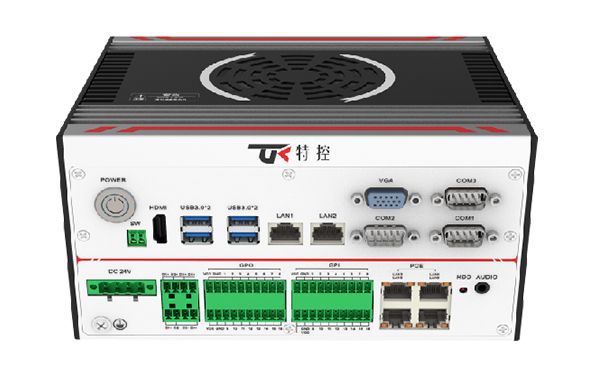

| MEC-T1136 (vision controller) | High Performance Compact Vision Industrial Controller/H110 chipset/EC2-T1102-A/I3-6100T/8G (DDR4 SO-DIMM*1, max. 32G)/1*2.5-inch, 1*MSATA, built-in 128G SSD/6*LAN (1*Intel I219+1*Intel I210+4*POE Intel I210)/3*COM (3*RS232 as standard, COM1-2 optional RS232/RS485)/4*USB3.0/1*HDMI/1*VGA/32*GPIO (16*GPI+16*GPO with isolation, support 5V-24V external power supply)/4*Visual light source control, support external hard trigger/1*M.2 ( KEY-E, 2230, USB2.0+PCIE signal, support WIFI+BT)/1*Audio Line-Out+MIC 2-in-1/DC24V, built-in 24V 220W power adapter/Wall-mounted, VESA Mount |
