| Processor | J1900（Base frequency 2.0GHz,Quad-core, Quad-thread) |
| Chipset | MCU |
| BIOS | AMI UEFI |
| ?Display | Integrated graphics（VGA+HDMI） |
| Memory | Onboard DDR3L 4GB |
| Drive Bay | Supports 1*2.5" hard drive bay, Built-in 1*128GB SSD |
| Ethernet | Onboard 2*Intel I210 (10/100/1000Mbps) |
| I/O Interface | 1* HDMI,1*VGA,2*LAN 2*COM (RS232*2, RS485 optional) 3*USB2.0，1*USB3.0 6*GPIO 1* Power button 1*DC Power connector (Aviation plug) |
| ?Operating Temperature | 0℃-60℃,5%～95% (non-condensing) |
| Storage Temperature | -20℃～70℃,5%～95% (non-condensing) |
| ?Power Supply | Wide-voltage DC 9V-28V input, 12V Power adapter |
| ESD | Contact 6Kv, Air Gap 8Kv |
| Vibration Protection | IEC 60068-2-6，IEC 60068-2-64 |
| Housing Material | Aluminum-magnesium alloy,Galvanized Steel |
| Mounting | Wall-mounted |
| OS Support | Windows 7/8/10/Linux |
| Dimensions (W*H*D) | 158*38*120.8（mm） |
| Weight (KG) | 1.2（KG） |
| Model No. | Description |

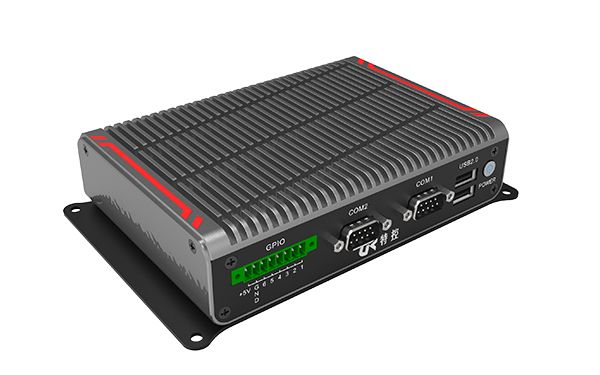

| MEC-T1922 | Compact Embedded Box PC/EC3-T1922-C2/J1900/Onboard 4G DDR3L memory (no expansion slot)/1*2.5" Drive bay, Built-in 1*128GB SSD (Supports Power failure protection)/3*USB2.0, 1*USB3.0/1*HDMI, 1*VGA/Built-in 2*RS232 (COM1-2 optional RS485)/2*LAN (2*Intel I210)/6*GPIO (customizable)/1*Mini PCIE (half-height, Optional support WiFi/BT)/DC9-36V Power supply, 12V 60W Power adapter / wall-mounted, embedded-mounted |
