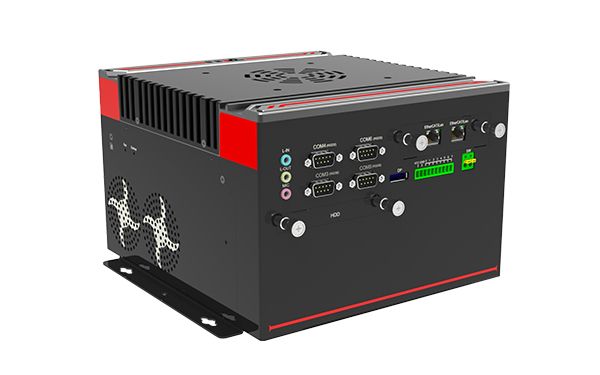

◆Aluminum-magnesium Alloy
◆Intel® Core? 6th/7th/8th/9th Gen
◆1* HDMI,1*VGA,6*COM,4*LAN ,8*USB
◆-10 ~ 60℃ Extend Temperature Operating
| Processor | Supports 65W or lower 6th/7th/8th/9th Gen Intel Core i7/i5/i3 (LGA 1151). Standard specs |
| 65W CPU | Supports 6th/7th/8th/9th Gen desktop i3/i5/i7 CPU (?e.g. i3-6100, i5-7400, i7-8700, i5-9400) |
| Chipset | H110 |
| BIOS | AMI UEFI |
| ?Display | Integrated graphics (VGA + HDMI + DP) |
| Memory | 2*SO-DIMM Slots, DDR4 2400, up to 32GB. Standard specs |
| Drive Bay | 1*M.2 (KEY-M, 2280, PCIEx4 NVME and SATA adaptable) 1*2.5" drive bay(7mm/15mm) Standard specs |
| Ethernet | 1*Intel I219 (10/100/1000Mbps, supports Wake-on-LAN). 3*Intel I210 (10/100/1000Mbps adaptive Ethernet). |
| Expansion Slots | 1*M.2 (KEY-B, 3042/3052, PCIe+USB3.0, supports 4G/5G modules) 1*MINI PCIe (full height, PCIe+USB2.0, supports WiFi module) 1*PCIEx16 1*PCIEx4 Max. size of Graphics card |
| I/O Interface | 1* VGA 1* HDMI 1*DP 4*LAN 6*COM (Standard specs |
| ?Operating Temperature | -10°C ~ 60°C, 5%~95% (non-condensing) |
| Storage Temperature | -20°C ~ 75°C, 5% ~ 95% (non-condensing) |
| ?Power Supply | DC12~24V, standard specs |
| ESD | Contact 6Kv, Air Gap 8Kv |
| Vibration Resistance | GB/T2423.10 |
| Chassis Material | Aluminum-magnesium alloy, galvanized steel. |
| Mounting | Wall mount, VESA standard |
| OS Support | (6th/7th Gen CPU) Windows 7/8/10/Ubuntu 18.04 or above/CentOS 8 or above/Linux (Kernel version 4.15 or above) (8th/9th Gen CPU) Windows 10/Ubuntu 18.04 or above/CentOS 8 or above/Linux (Kernel version 4.15 or above) |
| Dimensions (W*H*D) | 220*240*150(mm) |
| Weight (KG) | 4.6（KG） |
| Model No. | Description |
| MBOX-T1151DH-02 | (Turbo Boost Enabled, Triple Display, 1*PCIe x16 +1*PCI, i5-6500, 8GB, 128GB) High-performance Expansion 2-slot Box PC/H110 Chipset/CP-TH110D/I5-6500/8G (2*DDR4 SO-DIMM, up to 32GB)/1*2.5” drive bay, 1*M.2 (supports SATA SSD), Standard specs：128GB SSD/4*LAN (1*Intel I219 + 3*Intel I210)/6*RS232 (COM1-2 optional RS232/RS422/RS485)/4*USB3.0 +4*USB2.0/1*HDMI/1*VGA/1*DP/1*Backup button/1*Restore button/1*Remote Switch/Supports T-MOD module expansion (2*RJ45, 2*CAN, or 12*DI+12*DO optional) / 1*SIM slot/1*M.2 Key-B (3042/3052, supports 4G/5G)/1*M.2 (Key-M 2280, supports PCIe x4 NVMe or SATA SSD)/1*MPCIe (Full-height, PCIe + USB2.0 signals, supports WiFi/BT)/DC 12V-24V input, standard specs：19V 123W Power Adapter/Wall mount, VESA standard. |
| MBOX-T1151DH-04 | (Turbo Boost Enabled, Triple Display, 2*PCI, i5-6500, 8GB, 128GB) High-performance Expansion 2-slot Box PC/H110 Chipset/CP-TH110D/I5-6500/8G (2*DDR4 SO-DIMM, up to 32GB)/1*2.5” drive bay, 1*M.2 (supports SATA SSD), Standard specs：128GB SSD/4*LAN (1*Intel I219 + 3*Intel I210)/6*RS232 (COM1-2 optional RS232/RS422/RS485)/4*USB3.0 +4*USB2.0/1*HDMI/1*VGA/1*DP/1*Backup button/1*Restore button/1*Remote Switch/Supports T-MOD module expansion (2*RJ45, 2*CAN, or 12*DI+12*DO optional) / 1*SIM slot/1*M.2 Key-B (3042/3052, supports 4G/5G)/1*M.2 (Key-M 2280, supports PCIe x4 NVMe or SATA SSD)/1*MPCIe (Full-height, PCIe + USB2.0 signals, supports WiFi/BT)/DC 12V-24V input, standard specs：19V 123W Power Adapter/Wall mount, VESA standard. |
