| Model | CGL-TPE2-H4P |
| PCIe | PCIE2.0 (2.5GT/s & 5.0GT/s) x4, compatible with x8, x16 |
| Controller Chip | 4*Intel?i210AT with 9.5KB jumbo frame support |

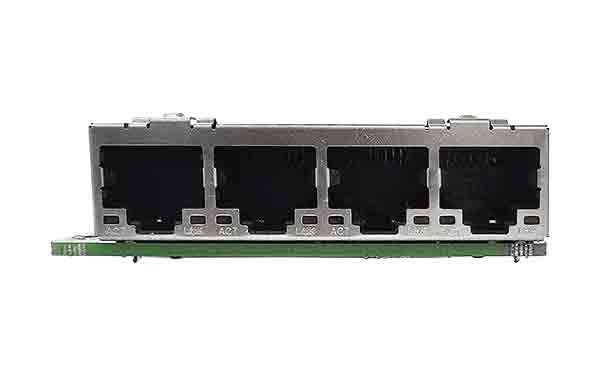

| Port Type | 4*8-Pin RJ45 |
| Port Rate | 10/100/1000Mbps；Max：1GbE |
| Cable Requirements | CAT2/3/4/5/6 cables(or higher) |
| Power Consumption | Min |
| Power Supply | PCIe bus power supply, 5W (max) power consumption |
| ESD | Contact discharge 6KV; air gap discharge 8KV |
| RSS Load Balancing | 4 queues per port |
| PXE | Supports |
| UEFI | Supports |
| DPDK | Supports |
| 1588 PTP | Supports |
| LED Indicator | Active (left) |
| Operating Temperature | -10°C ~ 60°C (14°F ~ 140°F) (Non-condensing) |
| Storage Environment | -20°C ~ 70°C (-4°F ~ 158°F) (Non-condensing) |
| Dimensions | PCB |
| Packing List | 1*Network Interface Card 1*Product warranty card |
